Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | ZCG-12L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 14960-17000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Filling Head: | Twelve | Brand Of Machine: | XIANFEI |
---|---|---|---|
Application: | Super Corrosive Liquid | Core Selling Point: | High Efficiency |
Packing: | Wooden Case | Shipment: | Shanghai Port |
Advantage: | Available For Customized Design | Production Capacity: | 2400-4800bottles/hour |
Highlight: | PP 2l Corrosive Liquid Filling Machine,PLC Corrosive Liquid Filling Machine,2000ml PP full automatic filling machine |

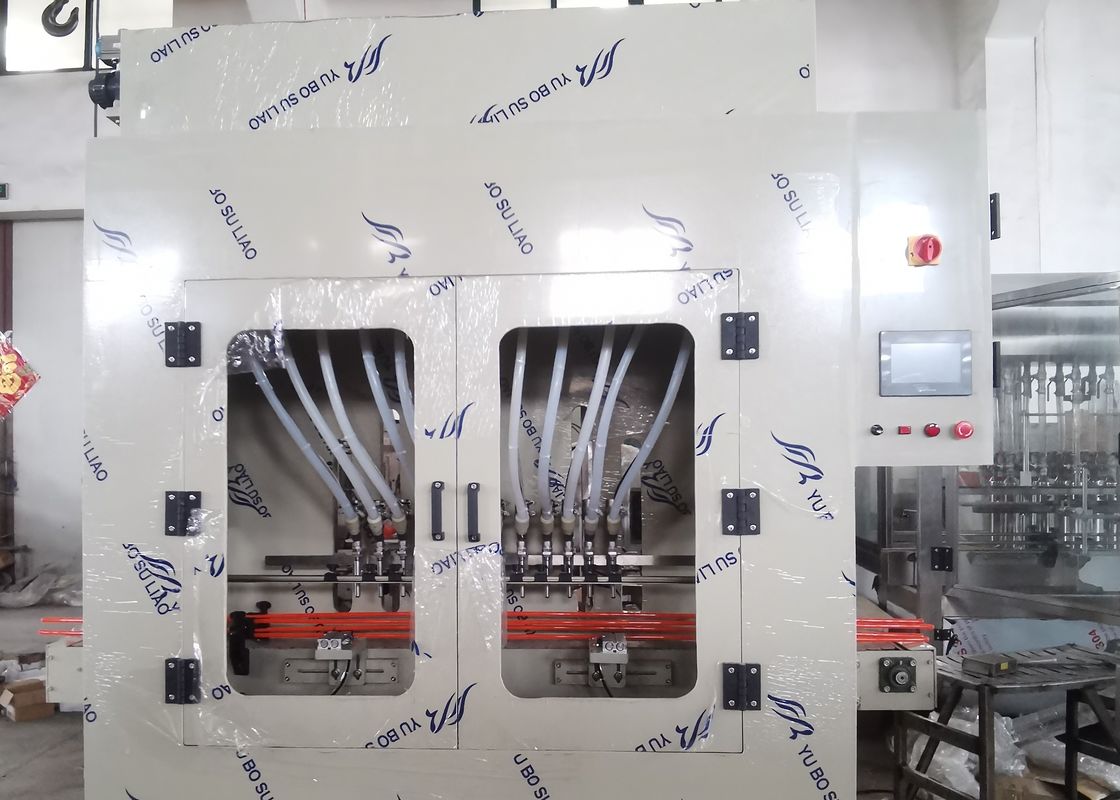

Twelve Filling Heads Inline Super Corrosive Liquid Filling Machine For Customized Design
Specifications:
Filling head | 12 |
Brand | XIANFEI |
Application | Corrosive liquid |
Core Selling Point | High Efficiency |
Packing | Wooden case |
Shipment Port | Shanghai port |
Advantage | Available For Customized Design |
Production capacity | 2400-4800bottles/hour |
Brief introduction:
ZCG-12L vertical machine of bottle installment in supper erosive liquid has an advanced technology. The creation of the machine is gathered by light, engine, electricity and gas. Its design is simple. Its operation is convenient and stable. The whole machine is made up of import nonmetal and can be suited for needs of all kinds apparatuses.
Filling Speed Parameter (Calculate by water):
Specification | 10 heads | 12 heads | 16 heads |
100ml | 80 b/m | 100 b/m | 120 b/m |
250ml | 60 b/m | 75 b/m | 95 b/m |
500ml | 45 b/m | 60 b/m | 75 b/m |
1000ml | 35 b/m | 45 b/m | 60 b/m |
Competitive Advantage:

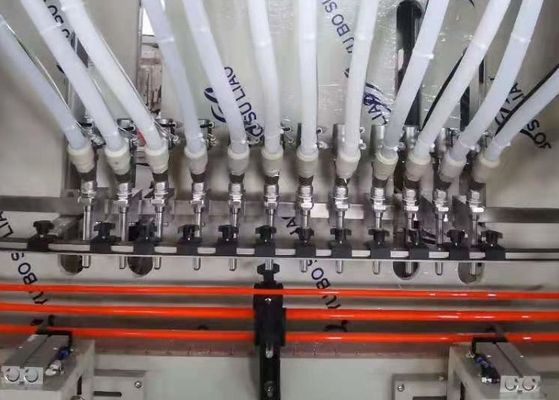

1. The filling machine is mainly used for the filling of corrosive liquids, so the fuselage is made of PP material, and the filling head is made of titanium alloy material, both of which have good corrosion resistance.
2. The machine adopts PLC programmable control, equipped with 3.6-inch touch screen man-machine interface system, fully automatic filling, simple operation, high filling accuracy.
3. Filling precision is automatically calculated by PLC control time, with high accuracy.
4. Through simple adjustment, the machine can adapt to the filling requirements of various containers, such as flat bottles, round bottles, and some special bottles.
5. Automatic loading of liquid sensor.
6. The filling machine is equipped with a leakage slot between the filling head and the bottle to ensure that the liquid will not leak during the filling process.
Twelve Filling Heads Inline Super Corrosive Liquid Filling Machine For Customized Design
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
PLC | Mitsubishi |
Touch screen | Weinview |
Air cylinder | AirTAC |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |
Applications:
1. The filling machine is made of imported non-metallic materials, suitable for corrosive liquid filling.For example,disinfectant water, clean toilet fluid and so on.
2. Fully automatic filling process.
3. It is suitable for liquid filling in chemical, pesticide and other industries.
4. The filling machine can fill more than 250ml materials, the accuracy can reach ±0.5%.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.
The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video
