Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine

Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine

Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine
Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine
Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: ZCG-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 14960-17000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: ZCG-12L Measure Precision ±0.5%(above 250ml): ±0.5%(above 250ml)
Material: PP And Titanium Alloy Application Bottle: Round Bottle,Square Bottle,Flat Bottle,etc
Control: PLC Touch Screen Control Electrical Brand: PANASONIC,SHAKO,AirTAC
Keywords: Corrosive Liquid Filling Contour Dimensions: 2000x1300x2200 (mm)
High Light:

2000mm Corrosive Liquid Filling Machine

,

2000ml Corrosive Liquid Filling Machine

,

1500ml water bottling machine




Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine

Brief introduction:

1. ZCG-12L vertical machine of bottle installment in supper erosive liquid has an advanced technology.



2. The creation of the machine is gathered by light, engine, electricity and gas. Its design is simple.



3. Its operation is convenient and stable.



4. The whole machine is made up of import nonmetal and can be suited for needs of all kinds apparatuses.


Specifications:



Model ZCG-12L
Measure precision ±0.5%(above 250ml)
Material PP and Titanium alloy
Application bottle Round bottle,Square bottle,Flat bottle,etc
Control PLC Touch Screen Control
Electrical Brand PANASONIC,SHAKO,AirTAC
Core Selling Point High Efficiency
Keywords Corrosive liquid filling
Production capacity 2400-4800bottles/hour
Contour dimensions 2000x1300x2200 (mm)



Filling Speed Parameter (Calculate by water):


Specification 10 heads 12 heads 16 heads
100ml 80 b/m 100 b/m 120 b/m
250ml 60 b/m 75 b/m 95 b/m
500ml 45 b/m 60 b/m 75 b/m
1000ml 35 b/m 45 b/m 60 b/m




Competitive Advantage:

1. The filling machine is mainly used for the filling of corrosive liquids, so the fuselage is made of PP material, and the filling head is made of titanium alloy material, both of which have good corrosion resistance.

2. The machine adopts PLC programmable control, equipped with 3.6-inch touch screen man-machine interface system, fully automatic filling, simple operation, high filling accuracy.

3. Filling precision is automatically calculated by PLC control time, with high accuracy.

4. Through simple adjustment, the machine can adapt to the filling requirements of various containers, such as flat bottles, round bottles, and some special bottles.

5. Automatic loading of liquid sensor.

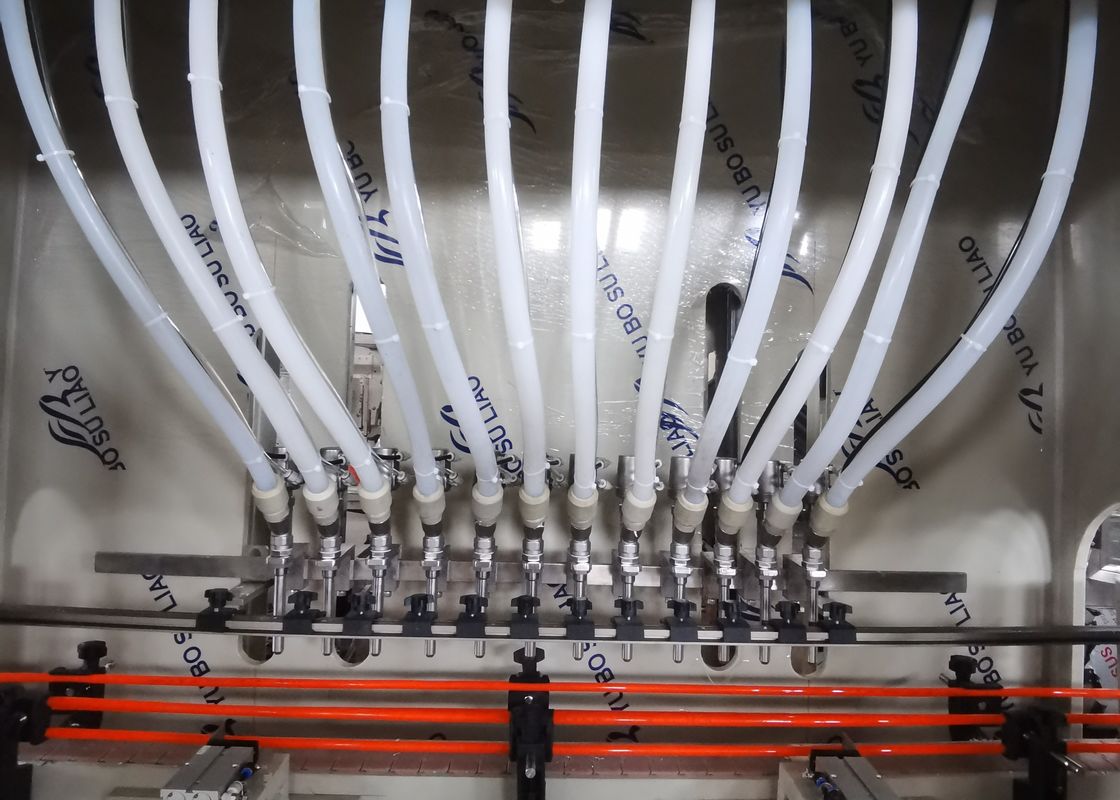

6. The filling machine is equipped with a leakage slot between the filling head and the bottle to ensure that the liquid will not leak during the filling process.



Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine


Round Bottle 2000mm Corrosive Liquid Filling Machine 1500ml Water Bottling Machine 0

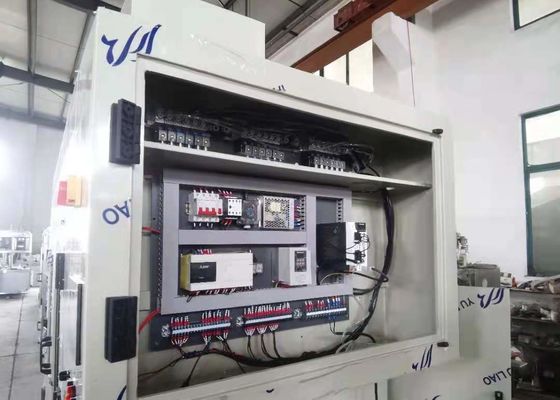

Elements brands list:


Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
PLC Mitsubishi
Touch screen Weinview
Air cylinder AirTAC
Electromagnetic valve SHAKO
Optoelectronic switch Sick


Applications:


1. The filling machine is made of imported non-metallic materials, suitable for corrosive liquid filling.For example,disinfectant water, clean toilet fluid and so on.

2. Fully automatic filling process.

3. It is suitable for liquid filling in chemical, pesticide and other industries.

4. The filling machine can fill more than 250ml materials, the accuracy can reach ±0.5%.



Company Profile:



Our company was founded in 2005, is focused on food, medicine, pesticide, chemical packaging machinery research and development, manufacturing in one of the modern science and technology enterprises, and has obtained ISO9001:2008 quality management system certification.Our products include rotary series filling machine, in-line series filling machine, environmental protection series filling machine.Automatic pressure viscous liquid filling machine.

Rotary series capping machine, linear series capping machine, self-adhesive labeling machine and so on.We will continue to provide customers with high quality equipment and perfect technical support.Warmly welcome new and old customers at home and abroad to visit and discuss cooperation.


What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?


1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers

2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory

3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.

4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
