Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | FXZ-4L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 5280-6000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Rub Cover Wheel: | 4 Rub Cover Wheels | The Machine Brand: | XIANFEI |
---|---|---|---|
The Machine Color: | Grey | Bottle Height: | 40-250mm |
Keywords: | Capping | Packing: | Wooden Case |
Screw Cap Rate: | High Effiency | Weight: | 500Kg |
High Light: | 250mm Inline Capping Machine,500Kg Inline Capping Machine,500Kg auto capping machine |

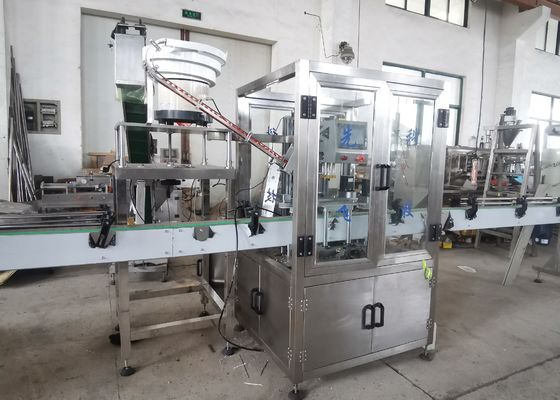

Bottle Height 250mm Inline Capping Machine 500Kg Auto Capping Machine
Features:
1. PLC touch type operation interface, simple setting, convenient operation, practical and beautiful.
2. The capping speed is fast. Compared with the claw capping machine, the capping speed of this machine can be improved by 3-4 times, and effectively.To prevent the bottle body hair, bottle cap damage and other problems.
3. It is suitable for all kinds of bottles in the applicable range. Just adjust the spacing of the synchronous belt, the capping wheel and the height of the rack, no need to replace the machine parts.
4. It is suitable for all kinds of bottles whose body shape is round, square, flat and round.
5. It can be used as a single machine, or can be matched with filling, sealing, labeling and other equipment to form an automatic mechanical filling production line.
Main Parameter:
Rub cover wheel | 4 Rub cover wheels |
The machine brand | XIANFEI |
The machine color | Grey |
Bottle Height | 40-250mm |
Keywords | Capping |
Packing | Wooden case |
Screw cap rate | High effiency |
Weight | 500Kg |
Workflow :
1. bottle management. The disorderly empty bottles are sent into the conveyor belt neatly by the rotary bottle unpacking machine. The empty bottles are blocked by the chuck under the filling head.
2. through the plunger pump filling. After the filling is completed, the chuck will take away the filling bottle and keep the empty bottle.
3. After the filling is completed, the bottle is sent to the plugging and rolling cover chuck station. After entering the station chuck, we see.
4. the manipulator will plug up and then pressure into the mouth of the bottle.
5. The bottle hangs the cover when it passes through the hanging cover. The same cover is also arranged by a vibrating plate and sent into the slide way and then slides into the hanging cover.
6. After hanging the lid, the lid pressing hammer presses the lid to the end, and the lock cap is rolled into a whole body by the claw knife. The whole process is like this, although the products may be different, it is basically the working principle of this capping machine.
7. Automatic capping machine can not only fill liquid, such as injection, disinfectant and a variety of oral liquid, essential oil, cod liver oil and other small bottles of liquid can be filled and locked.
Features:
1. PLC touch type operation interface, simple setting, convenient operation, practical and beautiful.
2. The capping speed is fast. Compared with the claw capping machine, the capping speed of this machine can be improved by 3-4 times, and effectively
To prevent the bottle body hair, bottle cap damage and other problems.
3. It is suitable for all kinds of bottles in the applicable range. Just adjust the spacing of the synchronous belt, the capping wheel and the height of the rack
, no need to replace the machine parts.
4. It is suitable for all kinds of bottles whose body shape is round, square, flat and round.
5. It can be used as a single machine, or can be matched with filling, sealing, labeling and other equipment to form an automatic mechanical filling production line.
Applications:
1. This capping machine can be used for automatic capping and sealing of beverage bottles.
2. It is also suitable for some oil bottles, such as edible oil bottles, olivo bottles, etc.
3. Daily care products, such as hair shampoo, dishwashing liquid bottles are also applicable.
4. Bottles of all shapes and sizes can be adapted.
Machine configuration | ||
1 | Main motor | Taiwan |
2 | Solenoid valve | SHAKO |
3 | Cylinder | Air TAC |
4 | Photoelectric | OMRON |
5 | Inverter | Panasonic |
Bottle Height 250mm Inline Capping Machine 500Kg Auto Capping Machine
Competitive Advantage:
1. Control interface -- the traditional control panel knob control, simple operation interface, safe and reliable;
2. Electrical components -- international famous brands are adopted to ensure the safety, reliability and accuracy of the equipment;
3. Mechanical parts - transmission gear belt and bottle conveyor belt are made of Italian McGowdy, the rest of the machine parts are made of 304 stainless steel.
4. Function expansion -- can be configured according to customer's special requirements, such as: scanning code elimination device can be added.
XIANFEI service
Machine Customization Service
1. We can customize the machine according to your requirements. Such as the need for special materials, voltage size, the shape of the bottle and so on
2. We have professional mechanical engineers who can give you some professional advice. As you know, our company has been engaged in the research, development and manufacture of filling machines for 16 years.
3. According to your requirements, we can reasonably plan the whole filling line for you, and provide some suggestions about the machine according to your needs
Reliable after-sales service
1. We will deliver the goods within the promised delivery period and provide you with the B/L to ensure that you can get the machine quickly. Send operation manuals and instructions at the same time.
2. If you need, our team of professional engineers will come to your factory to install the machines and train your employees until they can operate the machines well.
The machine has a one year free warranty.
3. 24-hour engineer response.
