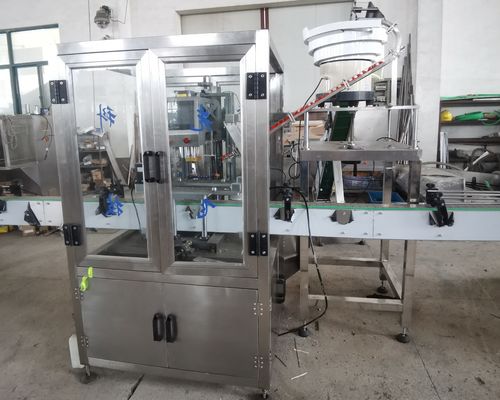

4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper

4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper

4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper
4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper
4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: FXZ-4L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 5280-6000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: FXZ-4L Rub Cover Wheel: 4
Brand: XIANFEI Material: SUS304
Bottle Diameter: 45-140mm Production Capacity: 2400bottles/hour(frequency Control)
Operation: Easy Guarantee period : One Year
High Light:

4 Rub Inline Capping Machine

,

SUS304 Inline Capping Machine

,

SUS304 automatic bottle capper



4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper







Summary:



1. FXZ-4L automatic inline capping machine adopts mechanical and electrical integration design, easy to operate, simple maintenance, reliable operation,Large applicability.



2. Its working principle is to transport the bottle body through the conveyor frame, four groups of high elastic wear-resistant rubber wheels to twist the cap to achieve the purpose of capping.



3. This machine has the characteristics of reasonable design, compact structure, fast capping speed, strong reliability, easy operation, convenient maintenance and so on.



4. It is an ideal equipment for automatic capping process in pharmaceutical, food and chemical industries.





Applications:

1. This capping machine can be used for automatic capping and sealing of beverage bottles.



2. It is also suitable for some oil bottles, such as edible oil bottles, oil bottles, etc



3. Daily care products, such as hair shampoo, dishwashing liquid bottles are also applicable.



4. Bottles of all shapes and sizes can be adapted.





Specifications:



Model FXZ-4L
Rub cover wheel 4
Brand XIANFEI
Material SUS304
Bottle Diameter 45-140mm
Production capacity 2400bottles/hour(frequency control)
Operation Easy
Guarantee period One year





Elements brands list:



Name Brand and materials
PLC Mitsubishi
Touch screen Weinview
Frequency converter  Panasonic







4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper







Working principle:



1. The cap is stored in the hopper and transmitted to the capping mouth through the frequency conversion lifting belt.



2. The capping function is realized by two synchronous clamping belts and three groups of six capping locking wheels.



3. The capping function is just right through the mechanical torque adjustment function.



4 Rub Inline Capping Machine SUS304 Automatic Bottle Capper 0



What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
