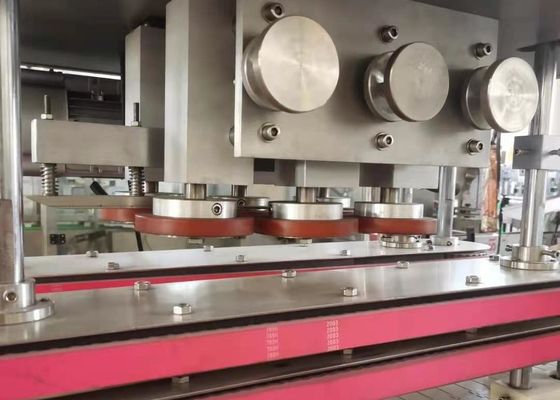

Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper

Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper

  • Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper
  • Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper
Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: FXZ-6L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 6424-7300USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Name: FXZ-6L Bottle Diameter: 45-140mm
Cap Diameter: 20-50mm Bottle Height: 40-250mm
Production Capacity: 6000bottles/hour(frequency Control) Weight: 500Kg
Total Power: 1.8KW Contour Dimensions: 2000x850x2100 (mm)
High Light:

500kg auto capping machine

,

250mm auto capping machine

,

500kg wine bottle screw capper



Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper





Brief introduction



FXZ-6L inline capping machine is the latest new product launched by our company. Compared with the previous generation of machines, the efficiency of capping is greatly improved. It is also widely used for various bottle caps in food, beverage, oil, chemical, pesticide, medicine and other industries, such as beverage bottle caps, washing and protecting series of extruded bottle caps can be used. It is usually used with filling machine in filling line. Its biggest characteristic is can adapt to a variety of cap screw, only need to carry out local fine-tuning, simple operation. This machine has the international advanced bottle arrangement device, has the very excellent performance in the capping efficiency aspect.





Put into use:



1. The capping machine can be used for automatic capping of cylindrical beverage bottles with internal thread, matching with the filling machine, forming a complete filling process, automatic production process, greatly improving the filling efficiency.



2. Necessary sauce bottles, large edible oil bottles, small to large bottles, can be used.



3. In daily care products, such as shampoo, dishwashing liquid bottles and other covers with extrusion pumps can also be used for capping.





Specifications:



Model FXZ-6L
Bottle Diameter 45-140mm
Cap Diameter 20-50mm
Bottle Height 40-250mm
Production capacity 6000bottles/hour(frequency control)
Weight 500Kg
Total Power 1.8kw
Contour dimensions 2000x850x2100 (mm)





Elements brands list:



Name Brand and materials
PLC Mitsubishi
Touch screen Weinview
Frequency converter  Panasonic







Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper





Competitive Advantage:

  • Control interface -- the traditional control panel knob control, simple operation interface, safe and reliable;
  • Electrical components -- international famous brands are adopted to ensure the safety, reliability and accuracy of the equipment;
  • Mechanical parts - transmission gear belt and bottle conveyor belt are made of Italian McGowdy, the rest of the machine parts are made of 304 stainless steel.
  • Function expansion -- can be configured according to customer's special requirements, such as: scanning code elimination device can be added.



Plastic 250mm Auto Capping Machine 500kg Wine Bottle Screw Capper 0



What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
