Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | FXZ-4L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 5280-6000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Color: | Silver Grey | Control: | PLC Touch Screen Control |
---|---|---|---|
Operation: | Easy | Guarantee period : | 1 Year |
Element Brand: | Frequency converter--Panasonic | Weight: | 500Kg |
Total Power: | 1.2kw | Contour Dimensions: | 1000x750x1700 (mm) |
High Light: | 1.2KW Inline Capping Machine,500Kg Inline Capping Machine,500Kg bottle filling and capping machine |

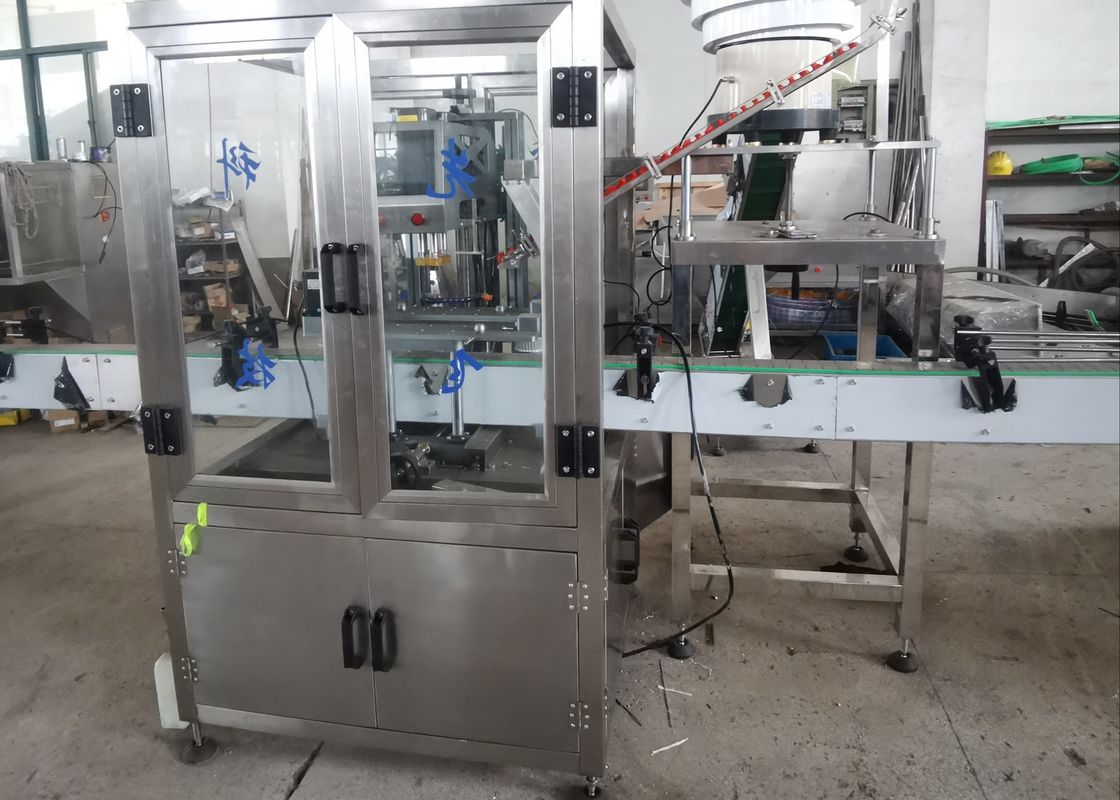

1.2KW Inline Capping Machine 500Kg Bottle Filling And Capping Machine
Workflow :
1. Bottle management. The disorderly empty bottles are sent into the conveyor belt neatly by the rotary bottle unpacking machine. The empty bottles are blocked by the chuck under the filling head.
2. Through the plunger pump filling. After the filling is completed, the chuck will take away the filling bottle and keep the empty bottle.
3. After the filling is completed, the bottle is sent to the plugging and rolling cover chuck station. After entering the station chuck, we see.
4. The manipulator will plug up and then pressure into the mouth of the bottle.

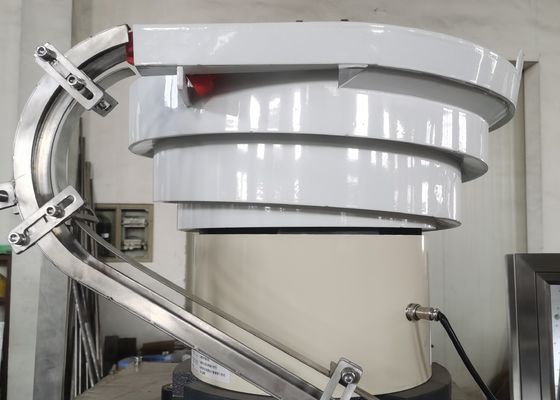

5. The bottle hangs the cover when it passes through the hanging cover. The same cover is also arranged by a vibrating plate and sent into the slide way and then slides into the hanging cover.
6. After hanging the lid, the lid pressing hammer presses the lid to the end, and the lock cap is rolled into a whole body by the claw knife. The whole process is like this, although the products may be different, it is basically the working principle of this capping machine.
7. Automatic capping machine can not only fill liquid, such as injection, disinfectant and a variety of oral liquid, essential oil, cod liver oil and other small bottles of liquid can be filled and locked.
Parameter:
Color | Silver grey |
Control | PLC touch screen control |
Operation | Easy |
Guarantee period | 1 year |
Element brand | Frequency converter--Panasonic |
Weight | 500Kg |
Total Power | 1.2kw |
Contour dimensions | 1000x750x1700 (mm) |
Machine configuration | ||
1 | Main motor | Taiwan |
2 | Solenoid valve | SHAKO |
3 | Cylinder | Air TAC |
4 | Photoelectric | OMRON |
5 | Inverter | Panasonic |
1.2KW Inline Capping Machine 500Kg Bottle Filling And Capping Machine
XIANFEI service:
Machine Customization Service
1. We can customize the machine according to your requirements. Such as the need for special materials, voltage size, the shape of the bottle and so on.
2. We have professional mechanical engineers who can give you some professional advice. As you know, our company has been engaged in the research, development and manufacture of filling machines for 16 years.
3. According to your requirements, we can reasonably plan the whole filling line for you, and provide some suggestions about the machine according to your needs.
Reliable after-sales service
1. We will deliver the goods within the promised delivery period and provide you with the B/L to ensure that you can get the machine quickly. Send operation manuals and instructions at the same time.
2. If you need, our team of professional engineers will come to your factory to install the machines and train your employees until they can operate the machines well.
The machine has a one year free warranty.
3. 24-hour engineer response.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
