Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | FXZ-4L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 5280-6000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Brand: | XIANFEI | Color: | Primary Silver Grey |
---|---|---|---|
Production Capacity: | 2400bottles/hour(frequency Control) | Apply To Industry: | Food Industry |
Element Brand: | Mitsubishi/Weinview/Panasonic | Bottle Shape: | Many Kinds Of Bottles |
Weight Of Machine: | About 500KG | Dimensions((L×W×H)): | 1000x750x1700mm |
High Light: | 500KG bottle filling and capping machine,1000mm bottle filling and capping machine,1000mm plastic cap machine |

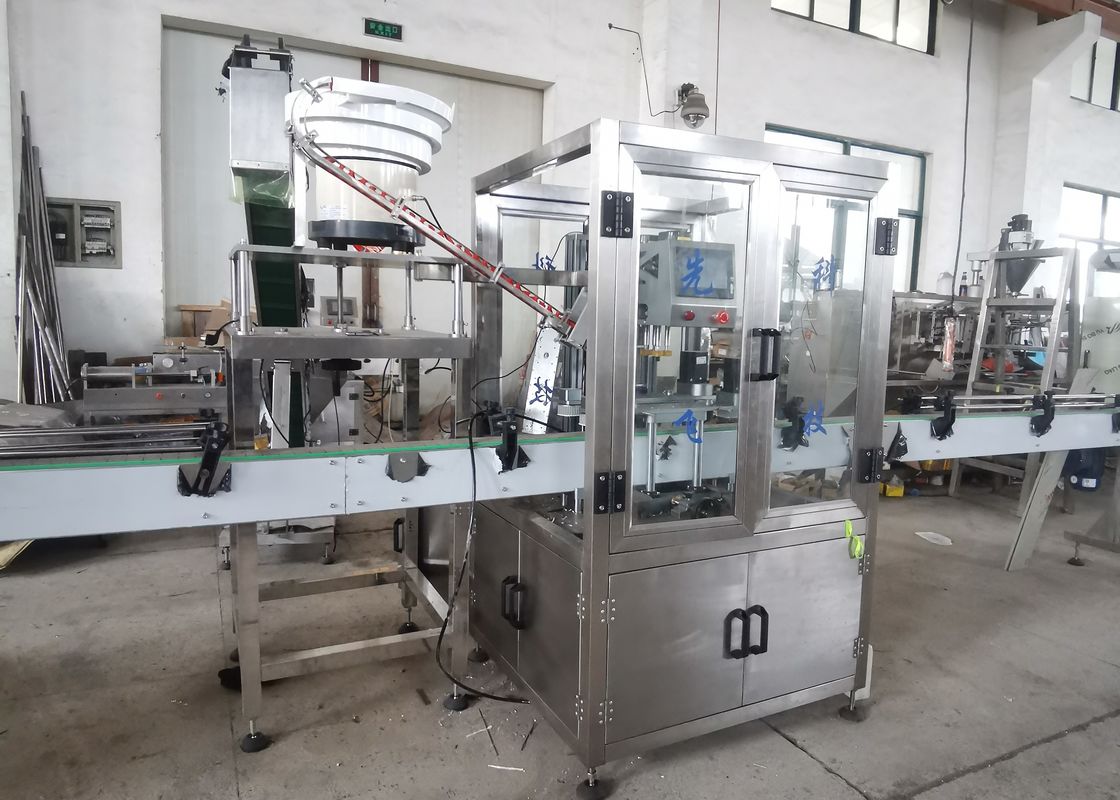

Silver Grey 500KG Bottle Filling And Capping Machine 1000mm Plastic Cap Machine
Introduction:
FXZ-4L Inline capping machine four sets of speed regulating motor are used for cover, bottle clip, transmission, capping, machine high degree of automation, good stability, easy adjustment, change the bottle shape or cover without spare parts, only need to adjust can be completed (such as with the feeding machine, can be automatically sent to the cover inside the vibration plate).
Working principle:

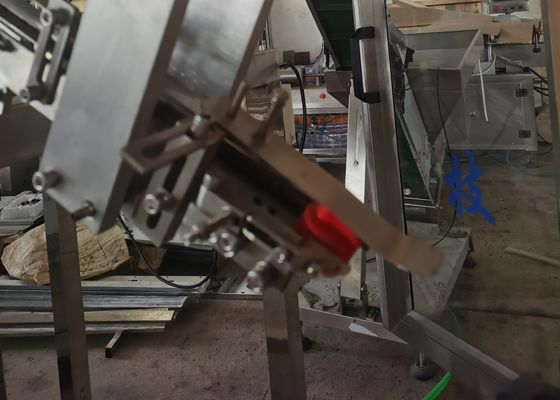

The cap is stored in the hopper and transmitted to the capping mouth through the frequency conversion lifting belt. The capping function is realized by two synchronous clamping belts and three groups of six capping locking wheels. The capping function is just right through the mechanical torque adjustment function.
Parameter:
The machine brand | XIANFEI |
Color | Primary silver grey |
Production capacity | 2400bottles/hour(frequency control) |
Apply to industry | Food industry |
Element brand | Mitsubishi/Weinview/Panasonic |
Bottle shape | All kinds of bottles |
Weight of machine | About 500KG |
Dimensions((L×W×H)) | 1000x750x1700mm |
Machine configuration | ||
1 | Main motor | Taiwan |
2 | Solenoid valve | SHAKO |
3 | Cylinder | Air TAC |
4 | Photoelectric | OMRON |
5 | Inverter | Panasonic |
Silver Grey 500KG Bottle Filling And Capping Machine 1000mm Plastic Cap Machine
XIANFEI service:
Machine Customization Service
1. We can customize the machine according to your requirements. Such as the need for special materials, voltage size, the shape of the bottle and so on.
2. We have professional mechanical engineers who can give you some professional advice. As you know, our company has been engaged in the research, development and manufacture of filling machines for 16 years.
3. According to your requirements, we can reasonably plan the whole filling line for you, and provide some suggestions about the machine according to your needs.
Reliable after-sales service
1. We will deliver the goods within the promised delivery period and provide you with the B/L to ensure that you can get the machine quickly. Send operation manuals and instructions at the same time.
2. If you need, our team of professional engineers will come to your factory to install the machines and train your employees until they can operate the machines well.
The machine has a one year free warranty.
3. 24-hour engineer response.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
