Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | FXZ-6L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 6424-7300USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Brand Of Machine: | XIANFEI | Control: | PLC Touch Screen Control |
---|---|---|---|
Material: | SUS304 / Stainless Steel | Apply High Bottle: | 40-250mm |
Weight: | 500Kg | Electrical Brand: | Air TAC、SHAKO |
Application: | Beverage Bottles | Serive: | 1 Year Warranty |
High Light: | SUS304 plastic bottle capping machine,250mm plastic bottle capping machine,250mm beer bottle cap machine |

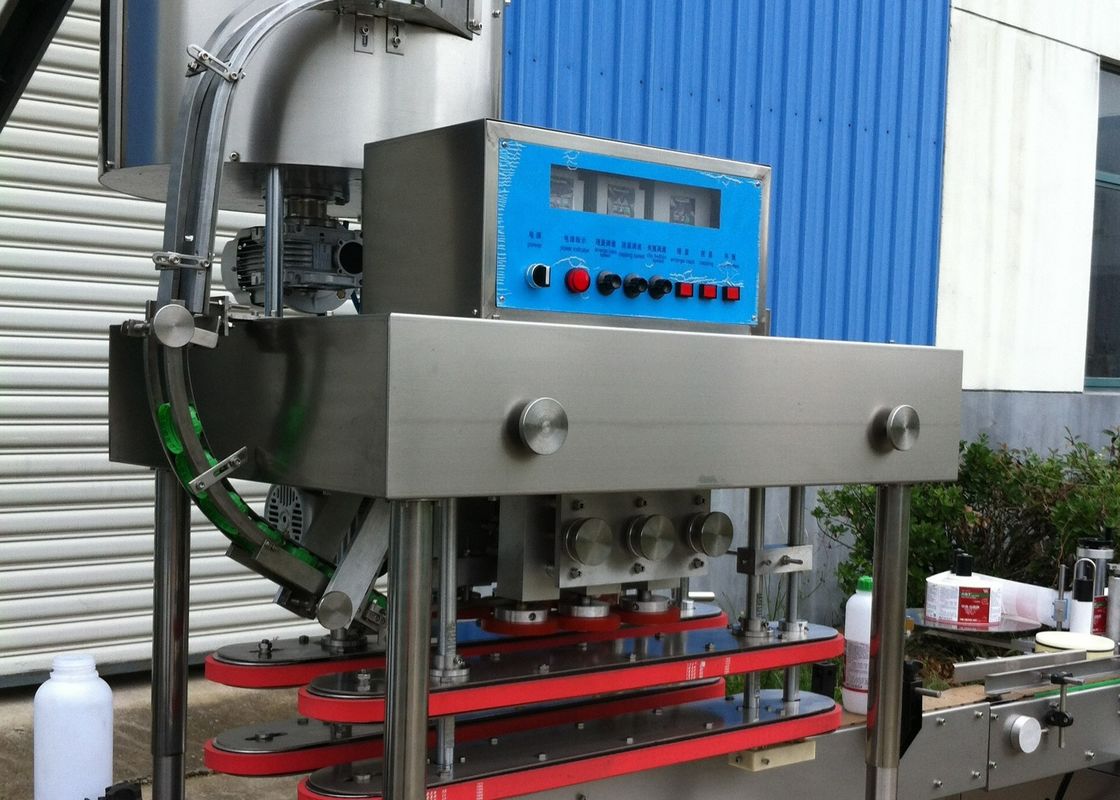

Screen SUS304 Plastic Bottle Capping Machine 250mm Beer Bottle Cap Machine
A brief introduction to the machine:
1. The main purpose of the FXZ-6L inline capping machine is to place cylindrical metal or plastic caps with internal threads on the bottle mouth and tighten them.
2. For example, cylindrical beverage bottles with internal threads are indispensable in our lives, edible oil bottles, pill bottles, etc., and can also be used in medicine, food, beverage, oil, pesticide and other industries, with a wide range of uses.
3. Usually used with conveyor, filling machine and other production line equipment to form a complete set of production lines.
4. It can also be used alone after the product is configured with a conveyor belt.
Brand of machine | XIANFEI |
Control | PLC Touch screen control |
Material | SUS304 / Stainless steel |
Apply high bottle | 40-250mm |
Weight | 500Kg |
Electrical Brand | Air TAC,SHAKO |
Application | Beverage bottles |
Serive | 1 year warranty |
The working conditions:
1. The ambient medium temperature is not higher than +50℃, not less than -10℃.
2. The relative temperature of air shall not be greater than 85% (when the medium temperature is 20±5℃).
3. Where there is no conductive dust.
4. Explosion-free environment.
5. Free of corrosive metals and insulating gases and vapors.
6. Where there is no violent vibration and shock.
Applications:
1. This capping machine can be used for automatic capping and sealing of beverage bottles.
2. It is also suitable for some oil bottles, such as edible oil bottles, olive oil bottles, etc
3. Daily care products, such as hair shampoo, dishwashing liquid bottles are also applicable
4. Bottles of all shapes and sizes can be adapted.
Screen SUS304 Plastic Bottle Capping Machine 250mm Beer Bottle Cap Machine
Machine configuration | |
Main motor | Taiwan |
Solenoid valve | SHAKO |
Cylinder | Air TAC |
Photoelectric | OMRON |
Inverter | Panasonic |
Use and maintenance :
1. The machine can be connected to production after debugging according to the above method, please do not adjust at will, so as not to affect the normal production.
2. In normal production, the cover of the bottle (can) in the material box of the capping device should be replenished continuously. Do not add too much at a time and affect the speed of the cap.Do not add metal objects into the material system of the capping device.
3. When the machine is running, do not put your hand between the capping wheel and the entrapment wheel to take the bottle and the cap, so as to avoid the accident of clipping.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
