Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | CZ-4 |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 17600-20000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Model: | CZ-4 Automatic Weighting Type Filling Machine | Material: | SUS304 |
---|---|---|---|
Color: | Argentate | Filling Heads: | Four Filling Heads |
Production Capacity: | ≤480 Bottles/hour (tested By Water) | Dimension: | 2500x1700x2300 Mm |
High Light: | SUS304 volumetric piston filling machine,Weighing volumetric piston filling machine,SUS304 oil bottle packing machine |

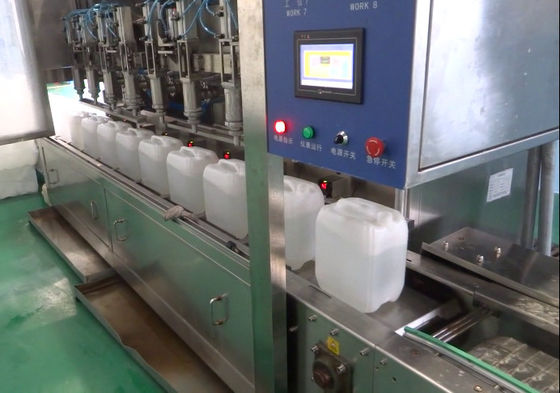

Argentate SUS304 Automatic Weighing Type Volumetric Filling Machine
Specifications:
Model | CZ-4 |
filling heads | Four filling heads |
Color | Argentate |
Production Capacity | ≤ 480 bottles/hour (tested by water) |
Filling Error | ±15ml |
Power of host machine | 2 KW |
Voltage | 220V/50Hz |
Contour dimensions | 2500x1700x2300 (mm) |
1. The weighing type filling machine is a new generation of filling machine developed and produced by our company.
2. The machine is suitable for filling 10 kg to 50 kg liquid.
3. There is photoelectric induction at the entrance to automatically count the bottles and fill according to the weight. After filling, the bottles will be discharged.
4. The machine adopts PLC, color touch screen control panel, easy to operate.
5. And each filling head has a weighing and feedback system, each filling head can be adjusted.
6. Photoelectric sensors and other electrical components are adopted international famous brands, quality is guaranteed.
7. This machine conforms to GMP standard, easy to disassemble, clean and maintain, and filling products contact parts are made of high quality stainless steel, if there are special requirements for materials, can also be customized.
Applications:
1. Especially suitable for water, edible oil, lubrication.
2. It is an ideal choice for food, medicine, cosmetics, chemical industry and so on.
3. The machine is safe, environment-friendly and hygienic, suitable for all kinds of workplaces.
4. Submersible filling, can reduce foam, suitable for all kinds of filling products.
Product data:
1. The filling head and cylinder adopt split mechanism, which can be disassembled separately, and the cylinder will not be damaged by liquid leakage.
2. Imported Yade polite cylinder is durable, and other seals and other accessories use standard parts, easy to replace and maintain.
3. Electric combination, supporting components are using supporting equipment, imported components are directly supplied by the brand agents, brand guarantee quality, to ensure the stable and reliable operation of the machine.
4. The filling adopts the motor lifting structure, the filling head height can be adjusted directly on the touch screen when filling of different specifications, one key to complete, without manual positioning and adjustment repeatedly, more convenient.
5. Conveyor belt is driven by frequency conversion separately. The filling machine and the cap-locking machine all use separate frequency conversion power heads, which operate independently and can be adjusted together with the host touch screen without interfering with each other, making the synchronization more accurate and stable. The starting and stopping of the conveyor belt are buffered to ensure smooth transportation and prevent the phenomenon of pouring bottles and oil spilling.
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
PLC | Mitsubishi |
Touch screen | Weinview |
Air cylinder | AirTAC |
Three-way valve | XIANFEI |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |
Argentate SUS304 Automatic Weighing Type Volumetric Filling Machine
Competitive Advantage:
1. This filling machine is mainly made of SUS304 or SUS316L.
2. The machine conforms to GMP standard, easy to disassemble, clean and maintain.
3. PLC programmable control is adopted.
4. 6-inch touch screen man-machine interface system.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
