Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | GNC-4LY |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 19360-25800USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 10 sets per month |
Model: | GNC-4LY Automatic Moving Servo Filling Machine | Total Power: | 8.0 KW |
---|---|---|---|
Material: | SUS 304 / 316L | Filling Capacity: | 500 - 5000 Ml |
Measure Precision: | ±0.5% (above 1000ml) | Filling Material: | Daily Chemical Product |
Weight Of Machine: | 1000Kg | Dimension: | 2000x1300x2200 Mm |
High Light: | SUS316L Detergent Filling Machine,5l Pneumatic Detergent Filling Machine,SUS316L automatic filling machine |

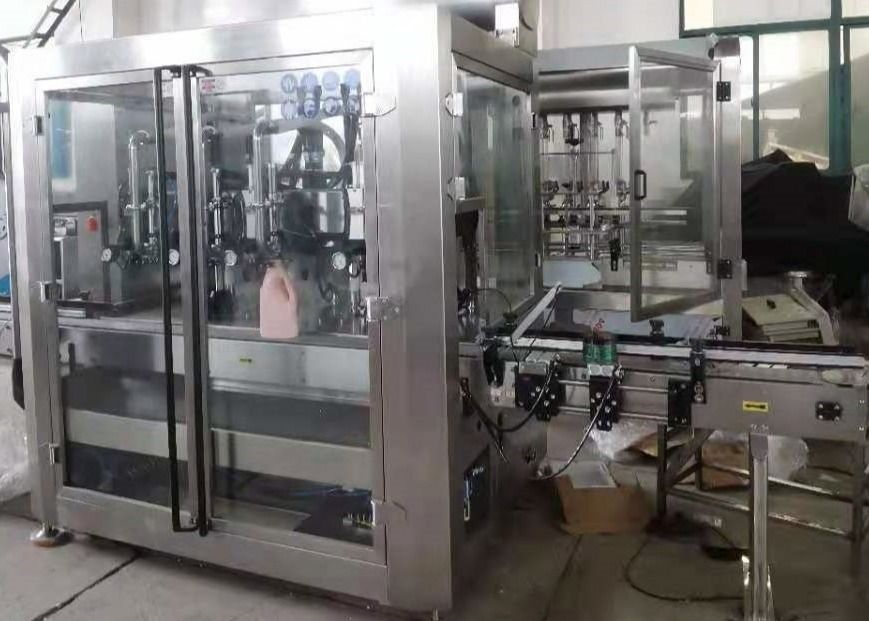

SUS316L Automatic Detergent Filling Machine Pneumatic 5L
Specifications:
Model | GNC-4LY |
Application bottle | Round bottle,Square bottle,Flat bottle,etc |
Measure precision | ±0.5%(above 1000ml) |
Filling capacity | 50-500/100-1000/200-2000/500-5000ml |
Production capacity | ≤5000bottles/hour |
Air pressure | 0. 6-0. 8Mpa |
Power source | 380V, 50Hz |
Total power | 8. 0KW |
Weight | 1000Kg |
Contour dimensions | 2000x1300x2200 (mm) |
1. This Model of filling machine is anew generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.
2. This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.
3. It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.
4. It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.
Applications:
1. This type of filling machine is suitable for many industries.Such as daily chemical, food, pesticide, medicine and so on.
2. It has a good effect on the filling of household washing products.Such as shower lotion, shampoo lotion, body lotion and so on.
3. It is also suitable for filling sticky food.Such as jam, ketchup, honey, chili sauce and so on.
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
Touch screen | Weinview |
Air cylinder | AirTAC |
Three-way valve | XIANFEI |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |
SUS316L Automatic Detergent Filling Machine Pneumatic 5L
Competitive Advantage:
1. This filling machine is mainly made of SUS304 or SUS316L.
2. PLC programmable control is adopted.
3. 6-inch touch screen man-machine interface system.
4. Fully automated.Automatic bottling, automatic filling,the filling process is more stable.
5. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
Company Profile:
Our company was founded in 2005, is focused on food, medicine, pesticide, chemical packaging machinery research and development, manufacturing in one of the modern science and technology enterprises, and has obtained ISO9001:2008 quality management system certification.Our products include rotary series filling machine, in-line series filling machine, environmental protection series filling machine.Automatic pressure viscous liquid filling machine.
Rotary series capping machine, linear series capping machine, self-adhesive labeling machine and so on.We will continue to provide customers with high quality equipment and perfect technical support.Warmly welcome new and old customers at home and abroad to visit and discuss cooperation.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.
We take our reputation very seriously.
Quality first is our consistent principle.
The company passed the Jiangsu high-tech enterprise certification in 2020.
You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.
There are two options.
The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
