Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | GNC-4LY |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 19360-25800USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 10 sets per month |
Name: | GNC-4LY | Filling Material: | Daily Chemical Product |
---|---|---|---|
Filling Capacity: | 500-5000 ML | Material: | SUS 304 / 316L |
Dimension: | 2000x1300x2200 Mm | Weight: | About 1000Kg |
High Light: | ss 316L Detergent Filling Machine,1000ml Detergent Filling Machine,1000ml automatic bottle filling machine |

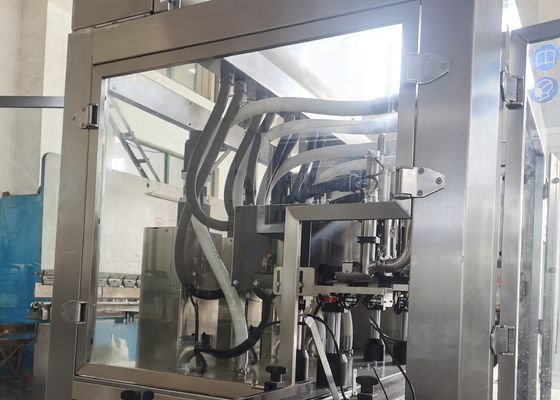

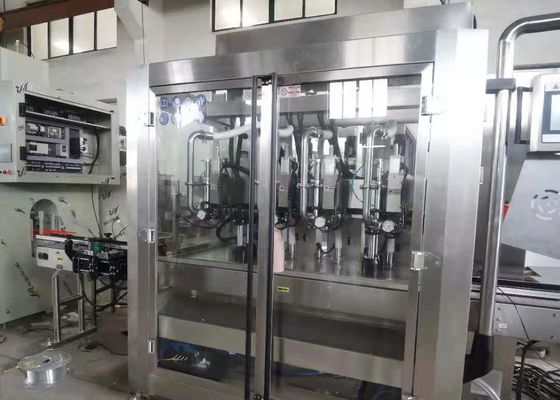

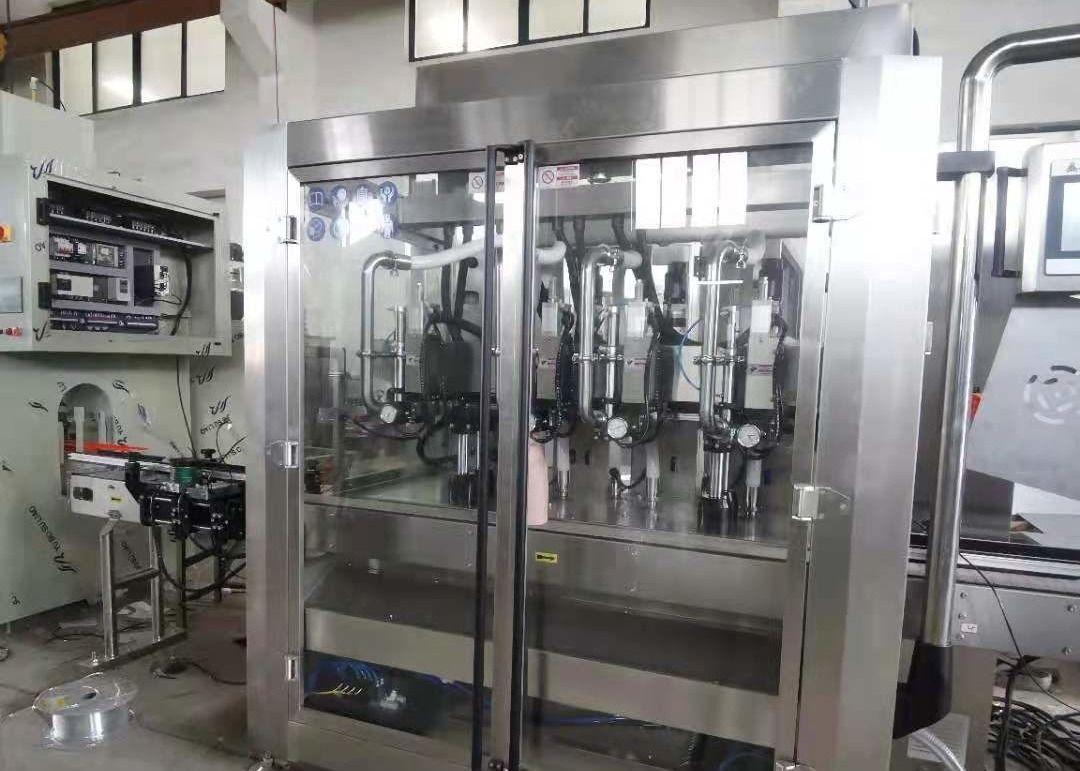

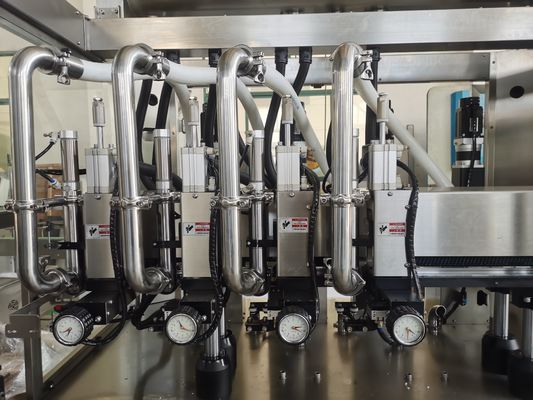

Sus 316L Detergent Filling Machine 1000ml Automatic Bottle Filling Machine
Brief introduction
1. This Model of filling machine is anew generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.
2. This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.
3. It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.
4. It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.
Applications:
1. This type of filling machine is suitable for many industries.Such as daily chemical, food, pesticide, medicine and so on.
2. It has a good effect on the filling of household washing products.Such as shower lotion, shampoo lotion, body lotion and so on.
3. It is also suitable for filling sticky food.Such as jam, ketchup, honey, chili sauce and so on.
Specifications:
Model | GNC-4LY |
Application bottle | Round bottle,Square bottle |
Production capacity | ≤5000bottles/hour |
Air pressure | 0. 6-0. 8 Mpa |
Power source | 380V / 50Hz |
Weight | About 1000KG |
Contour dimensions | 2000x1300x2200 (mm) |
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
Touch screen | Weinview |
Air cylinder | AirTAC |
Three-way valve | XIANFEI |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |
Sus 316L Detergent Filling Machine 1000ml Automatic Bottle Filling Machine
Competitive Advantage:
1. This filling machine is mainly made of SUS304 or SUS316L.
2. PLC programmable control is adopted.
3. 6-inch touch screen man-machine interface system.
4. Fully automated.Automatic bottling, automatic filling,the filling process is more stable.
5. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
Company advantage:
1. Our Company can provide complete engineering design more efficient, more wide new products to satisfy the customers' needs.
2. Our company has strong team of technicians and three engineering technicians who care specially researching and making packing machinery,and two senior engineering technicians invited from outside who have been engaged in to development and manufacture of packaging machine for more than 15 years. Most products integrate the idea of electro mechanical integration and reaches international advanced level.
3. The whole process is controlled by PLC,with its advanced technology, (patent:200810021345.X,200820041906.8,200910116606.0,200920172781.7) reliable quality and good credit.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
