Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | GNC-4LY |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 19360-25800USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Name: | GNC-4LY Automatic Moving Servo Filling Machine | Filling Material: | Daily Chemical Product ,other |
---|---|---|---|
Application Bottle: | Round Bottle,Square Bottle,Flat Bottle,etc | Filling Capacity: | 500-5000ml |
Measure Precision: | ±0.5%(above 1000ml) | Air Pressure: | 0.6-0.8mpa |
Material:: | SUS304/316L | Total Power: | 8.0KW |
Dimension(L*W*H): | 2000x1300x2200 Mm | Weight: | 1000Kg |
High Light: | SUS304 Detergent Filling Machine,500ml Detergent Filling Machine,500ml servo filling machine |

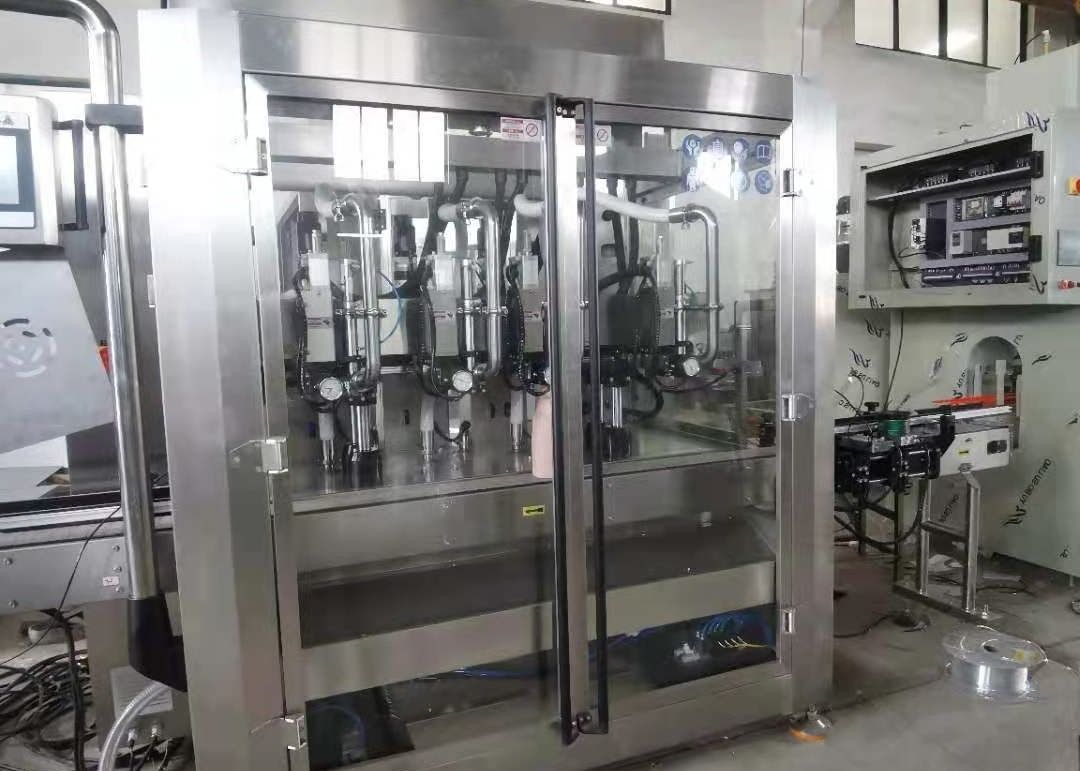

Automatic SUS304 Detergent Filling Machine Servo 500ml
Brief introduction
1. This Model of filling machine is anew generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.
2. This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.
3. Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.
4. It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.
5. It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.
Specifications:
Model | GNC-4LY(choice 2,4) |
Application bottle | Round bottle,Square bottle,Flat bottle,etc |
Measure precision | ±0.5%(above 1000ml) |
Filling capacity | 50-500/100-1000/200-2000/500-5000ml |
Production capacity | ≤5000bottles/hour |
Air pressure | 0. 6-0. 8Mpa |
Power source | 380V, 50Hz |
Total power | 8. 0KW |
Weight | 1000Kg |
Contour dimensions | 2000x1300x2200 (mm) |
Applications:
1. GNC-4LY is our new generation of viscous liquid filling machine.
2. It is suitable for liquid filling in daily chemical, food, pesticide, medicine and other industries.
3. It has an excellent effect on the filling of household washing products such as laundry detergent, detergent and hair shampoo.
4. It is also widely used in food filling.For example, honey, ketchup, chili sauce and so on.
5. The filling liquid is pulled and pushed by the sliding of the piston and cylinder.
6. The filling machine can achieve high precision quantitative filling, filling more than 1000ml of materials, the accuracy can reach ±0.5%.
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
Touch screen | Weinview |
Air cylinder | AirTAC |
Three-way valve | XIANFEI |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |

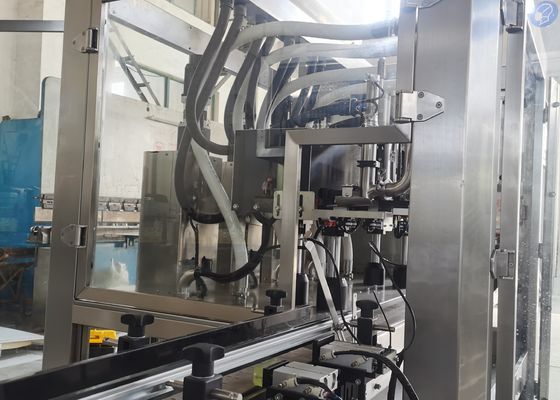

Automatic SUS304 Detergent Filling Machine Servo 500ml
Competitive Advantage:
1. This filling machine is mainly made of SUS304 or SUS316L.
2. PLC programmable control is adopted.
3. 6-inch touch screen man-machine interface system.
4. Fully automated.Automatic bottling, automatic filling,the filling process is more stable.
5. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.
The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
