Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine

Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine

  • Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine
  • Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine
Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 17600-20000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T, L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: GNC-12L Key Word: Viscous Liquid Fill
Color Of Machine: Silver Gray Material: SUS 304 / 316 L
Core Selling Point: High Efficiency And Stable Warranty: One Year Warranty
Shipment Port: Shanghai Port Packing: Wooden Case
High Light:

Silver Gray Volumetric Filling Machine


SUS304 Volumetric Filling Machine


SUS304 Viscous Liquid Filling Machine



 Automatic Silver Gray Viscous Liquid Filling Machine One Year Warranty



Brief Mutual Introductions:

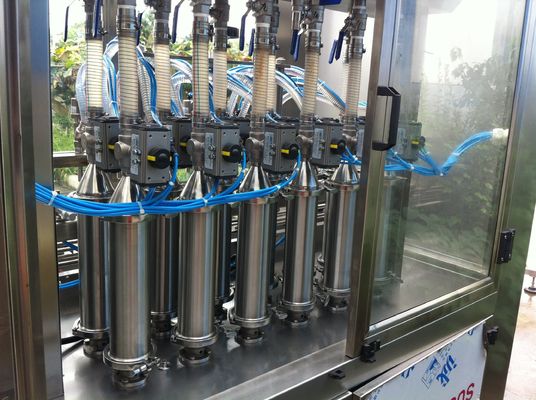

1. The machine is equipped with a special three-way filling valve, suitable for daily chemical, food, pesticide, medicine and other industries of filling.


2. Especially for high viscosity materials (such as thick sauce, pepper sauce, tomato sauce, micro emulsion, suspension) effect is remarkable, high precision.


3. This machine adopts PCL programmable control, using 6 inch touch screen man-machine interface system, automatic bottle into, automatic filling, automatic bottle out.


4. Electrical and pneumatic components adopt international brands to ensure excellent quality and long-lasting and stable functions.


Main Technical specifications:


Model GNC-12L
Color Silver Grey
Material SUS304/316L
Shipment Port Shanghai port
Core Selling Point High Efficiency
Warranty 1 year warranty
Keywords Viscous liquid filling
Packing Wooden case


Elements brands list:


Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
PLC Mitsubishi
Touch screen Weinview
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick



Performance advantages:


1. Functional Improvement - There is a drip-proof device for cutting material, which can be used for submersible filling according to material characteristics.


2. Machine parts - All made of 304 stainless steel.


3. Electrical components - all adopt internationally renowned brands to ensure the safety, reliability, accuracy and stability of the equipment.


4. Inspection of Filling - No Bottle, No Bottle, No Bottle.


5. Counting detection - real-time counting, intuitive reflection of work output.




1. GNC-12L automatic pressure viscous liquid filling machine is suitable for high viscosity material filling.

2. It is also suitable for some food filling with viscosity.For example, honey, thick sauce, hot sauce, ketchup and so on.


3. Excellent performance when filling daily chemical products such as laundry detergent and detergent.

4. Microemulsions and suspending agents needed in pesticides can also be used for filling.






Technical performance:
It implements automatic bottle entry, automatic filling, automatic bottle exit, electrical appliances and pneumatic components all adopt international brands, ensuring excellent quality and durable and stable performance.
The equipment is simple in structure and easy to operate.
It is an ideal filling equipment for high viscosity materials in China.

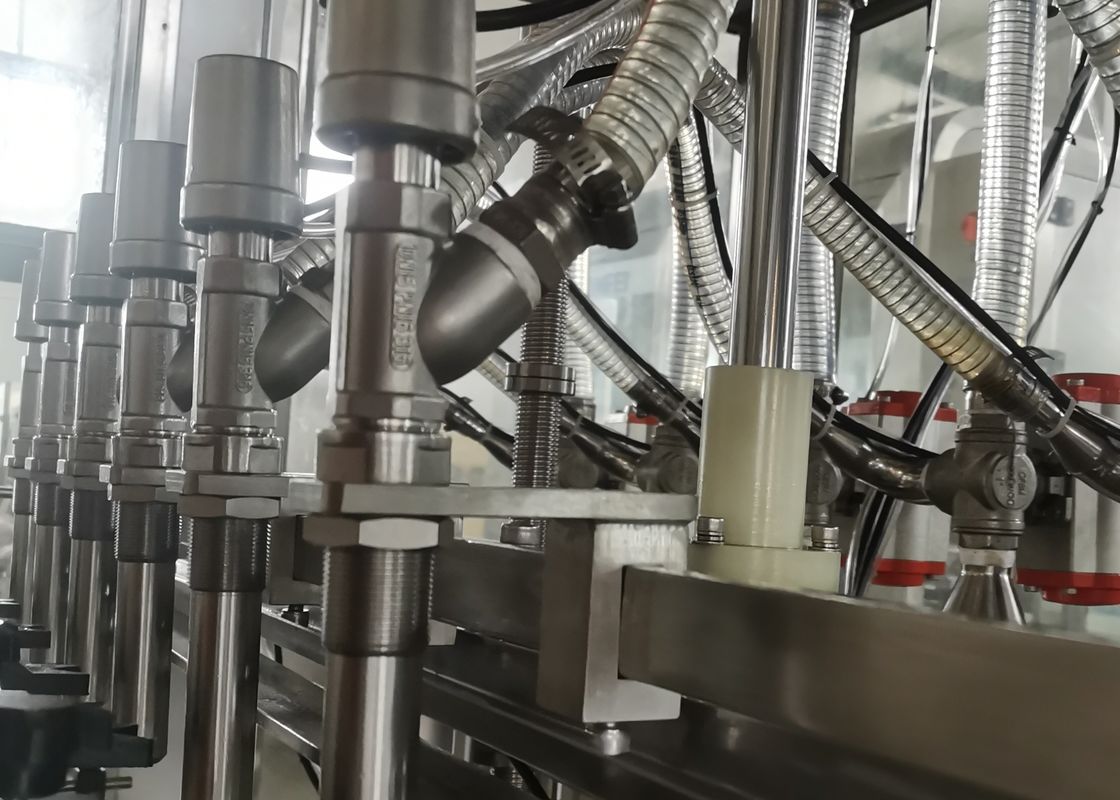

The machine is equipped with filling tightness head to prevent drip leakage and wire drawing, so as to ensure no drip leakage and wire drawing after filling.


Competitive Advantage:

1. This filling machine is mainly made of SUS304 or SUS316L.
2. Accurate fixed position, easy operation.
3. PLC programmable control is adopted.
4. Adopt special three-way filling valve.
5. Fully automated.Automatic bottling, automatic filling.
6. 6-inch touch screen man-machine interface system.
7. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
8. No leaking of the filling head and accurate filling quantity.
9. Easy change the specification of the bottle and fits all the shapes of bottles.



Q: How many years of experience do you have in packaging machinery and equipment?

A: We have 16 years of experience in manufacturing packaging machinery and equipment.


Q: Do you guarantee the quality of your products?

A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.


Q: Where is your factory located?

A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai


Q: How to install it?

A: We can provide installation.There are two options.

The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.


Q: how to ensure the operation of the filling machine?

A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.

Silver Gray Volumetric Filling Machine SUS304 Viscous Liquid Filling Machine 0

Tag: pressure viscous liquid filling machine,automatic liquid bottle filling machine,Laundry liquid detergent filling machine
