Place of Origin: | Jiangsu,China |
Brand Name: | XIANFEI |
Certification: | ISO |
Model Number: | LD-8L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | 17600-20000USD |
Packaging Details: | Wooden case |
Delivery Time: | 30 days after receiving your sample bottles and caps |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Name: | LD - 8L | Control: | PLC+Touch Screen |
---|---|---|---|
Air Pressure: | 0. 5 - 0. 7 Mpa | Power Source: | 380V / 50Hz |
Total Power: | 3. 0 KW | Weight: | About 650 KG |
High Light: | 0.7Mpa servo pump filling machine,PLC servo pump filling machine,PLC peristaltic pump liquid filling machine |

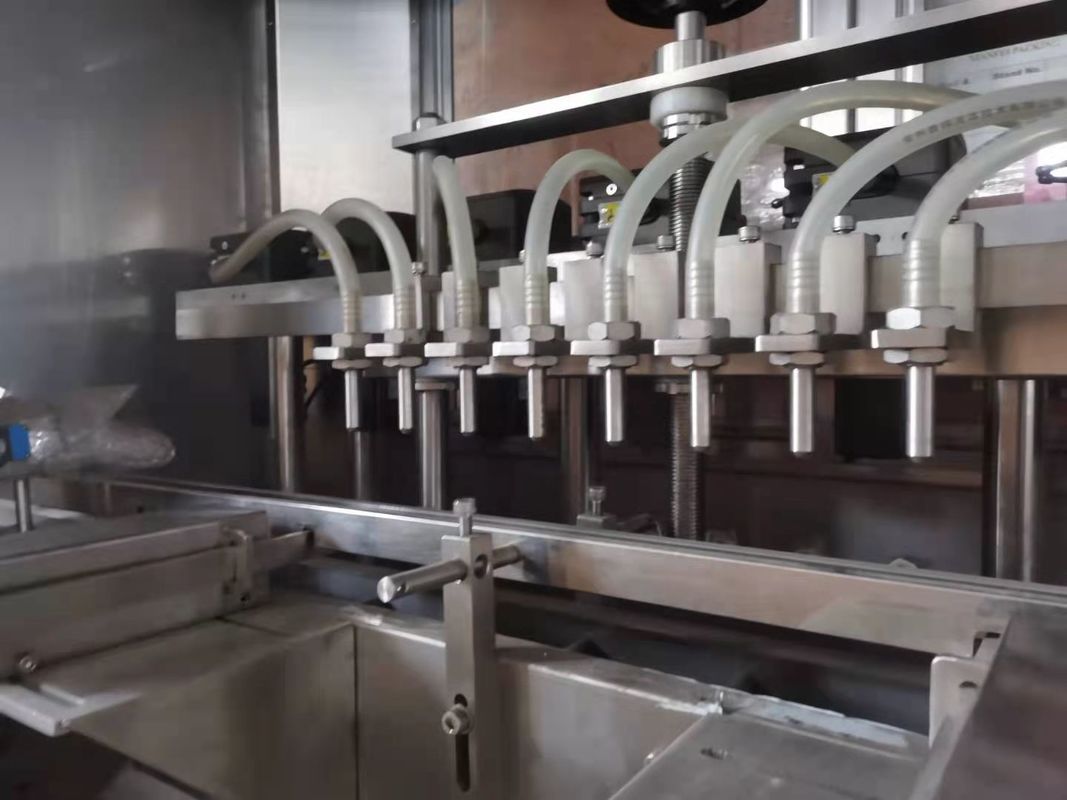

Full Automatic Plastic Bottle Peristaltic Pump Filling Machine For Customized Round Bottle
Brief introduction:
The pump source of the peristaltic pump is a peristaltic pump, which makes full use of the characteristics of the peristaltic pump and has simple structure. The pump body has no place to contact the filling liquid, so it is unnecessary to clean and disinfect the pump body. The pump is driven by servo motor, PLC control to adjust the load is simple, only input the corresponding number can be realized, can be adjusted at any time in the working state, precision up to ±1%.
Functional features:
1. With timing internal control and signal external control two operation modes, suitable for different filling mode requirements.
2. Backsuction Angle can be set to effectively avoid liquid drop during shutdown.
3. The operation of calibration function is simple, which can reduce the time of user's calibration and adjustment.
4. On-line adjustment function, convenient for users to adjust the liquid output online.
5. Each channel has a lack of bottle stop filling contact input, with independent lack of bottle stop filling function.
Specifications:
Model | LD-8L peristaltic pump filling machine |
Control | Touch screen control |
Air pressure | 0. 5-0. 7Mpa |
Power source | 380V, 50Hz |
Total power | 3. 0KW |
Weight | 650Kg |
Applications:
1. Excellent performance when filling daily chemical products such as laundry detergent and detergent.
2. Microemulsions and suspending agents needed in pesticides can also be used for filling.
3. It can be filled with most types of liquids, including liquids of high viscosity. Such as: all kinds of pharmaceutical, chemical, oil, cosmetics, food and other non-granular liquid.
4. This machine has the advantages of simple and novel structure, convenient maintenance and adjustment, stable operation, low noise and high degree of automation. It has inverted bottle stop control, non-bottle stop filling control, alarm and automatic speed reduction for lack of plug or cap. When the plug or cap is supplied, the speed will automatically rise to the set range.
Elements brands list:
Name | Brand and materials |
Servo motor | Panasonic |
Ballscrew | WIHIN |
PLC | Mitsubishi |
Touch screen | Weinview |
Air cylinder | AirTAC |
Three-way valve | XIANFEI |
Electromagnetic valve | SHAKO |
Optoelectronic switch | Sick |
Full Automatic Plastic Bottle Peristaltic Pump Filling Machine For Customized Round Bottle
Competitive Advantage:
1. The machine is mainly made of high quality stainless steel.
2. Adopt special three-way filling valve.
3. PLC programmable control is adopted.
4. 6-inch touch screen man-machine interface system.
5. Fully automated.Automatic bottling, automatic filling.
6. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
Company Profile:
Our company was founded in 2005, is focused on food, medicine, pesticide, chemical packaging machinery research and development, manufacturing in one of the modern science and technology enterprises, and has obtained ISO9001:2008 quality management system certification.Our products include rotary series filling machine, in-line series filling machine, environmental protection series filling machine.Automatic pressure viscous liquid filling machine.
Rotary series capping machine, linear series capping machine, self-adhesive labeling machine and so on.We will continue to provide customers with high quality equipment and perfect technical support.Warmly welcome new and old customers at home and abroad to visit and discuss cooperation.
Company advantage:
1,Our Company can provide complete engineering design more efficient, more wide new products to satisfy the customers' needs.
2,Our company has strong team of technicians and three engineering technicians who care specially researching and making packing machinery,and two senior engineering technicians invited from outside who have been engaged in to development and manufacture of packaging machine for more than 15 years. Most products integrate the idea of electro mechanical integration and reaches international advanced level.
3,The whole process is controlled by PLC,with its advanced technology, (patent:200810021345.X,200820041906.8,200910116606.0,200920172781.7) reliable quality and good credit.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
