SUS304 Automatic Liquid Bottle Filling Machine 1000ml

SUS304 Automatic Liquid Bottle Filling Machine 1000ml

  • SUS304 Automatic Liquid Bottle Filling Machine 1000ml
  • SUS304 Automatic Liquid Bottle Filling Machine 1000ml
SUS304 Automatic Liquid Bottle Filling Machine 1000ml
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: ZCG-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 8800-10000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Name: ZCG-12L Color Of Machine: Silver Gray
Material: SUS304 Measurement Accuracy: ±1%
Diameter Of Bottle: 33 - 110 ML Filling Capacity: 30 - 2000 ML
Production Capacity: <4800bottles Per Hour Driven Type: Electric
High Light:

SUS304 liquid bottle filling machine

,

1000ml liquid bottle filling machine

,

SUS304 automatic bottle filling


SUS304 / 316l Inline Automatic Plastic Bottle Filling Machine , 30-2000ml

Product presentation:

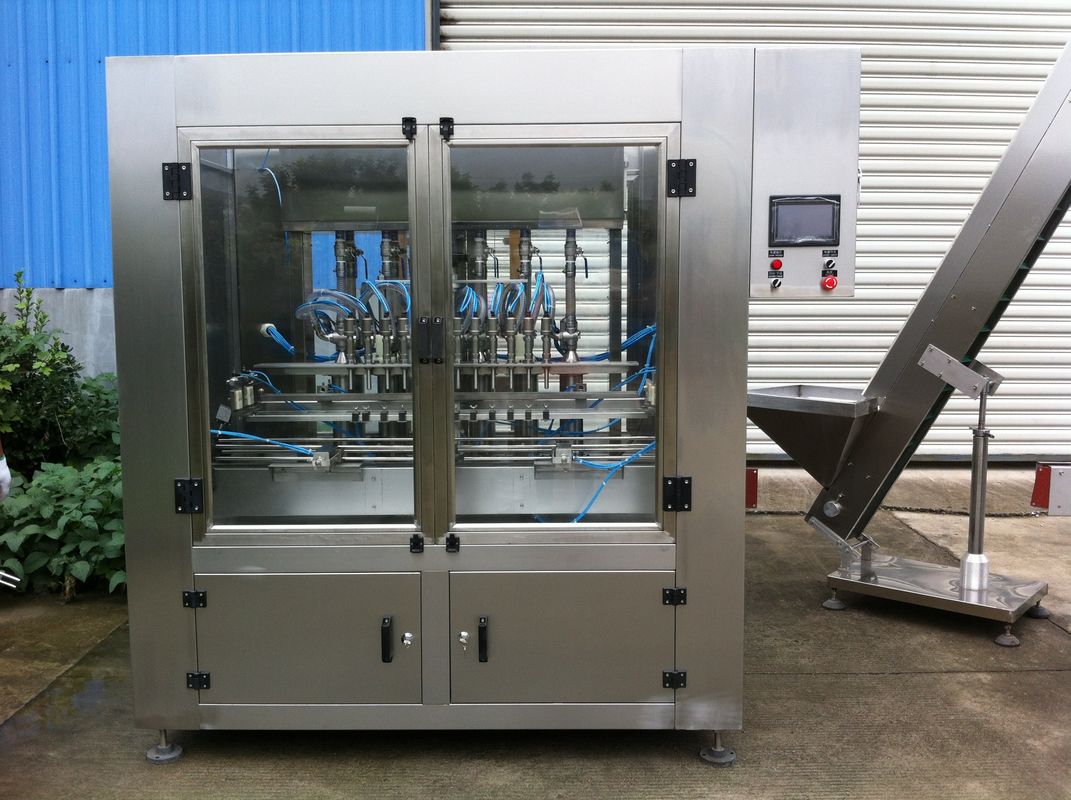

1. ZCG-12L Inline automatic liquid filling machine integrates the idea of electro mechanical integration and will bring you unheard-of new filling concept and reaches international advanced level.

2. The whole machine is made of stainless and anti-corrosion materials.

3. It can be suitable for the filling requirements of bottles (containers) with different shape and liquid non containing gases.

4. This filling machine is made of stainless and anti-corrosion materials.

5. This filling machine can be used for daily chemical products, cleaning products and so on.

6. The accuracy can reach ±1%.

7. Material contact part is made of 316L stainless steel and non-toxic corrosion resistant tetrafluorine hose.


Specifications:


ModelZCG-12L
ColorSilver Grey
MaterialSUS304/316L
Measure precision±1%
Bottle Diameter33-110ml
Filling capacity30-2000ml
Production capacity<5000bottles/hour
Driven TypeElectric




Filling speed parameter table


Size10Heads12Heads16Heads
100ml80Bottles/min100Bottles/min120Bottles/min
250ml60Bottles/min75Bottles/min95Bottles/min
500ml45Bottles/min60Bottles/min75Bottles/min
1000ml35Bottles/min45Bottles/min60Bottles/min



Performance advantages:

◆ Control system - with Mitsubishi PLC control system, filling dose of random fine-tuning.

◆ Interface - color screen user interface, human-machine interface is simple, safe and reliable.

◆ Feature Enhancements - Cutting with anti-drip device, can dive filling materials with functional properties. (This feature can be optional)

◆ Electrical components - are used internationally renowned brands, ensuring that equipment reliability, high accuracy;

◆ Mechanical components - and access to some materials of high quality non-toxic corrosion 316 stainless steel and PTFE hoses. Other machine parts are of high quality 304 stainless steel.


Elements brands list:


NameBrand and materials
Servo motorPanasonic
BallscrewWIHIN
PLCMitsubishi
Touch screenWeinview
Air cylinderAirTAC
Electromagnetic valveSHAKO
Optoelectronic switchSick



SUS304 Automatic Liquid Bottle Filling Machine 1000ml 0


SUS304 / 316l Inline Automatic Plastic Bottle Filling Machine , 30-2000ml

Competitive Advantage:

1. The machine is equipped with an environmental frame.

2. PLC programmable control is adopted.

3. 6-inch touch screen man-machine interface system.

4. Accurate positioning and simple operation.
5. The filling head does not leak and the filling quantity is accurate.
6. Easy to change bottle specifications, suitable for any shape of packaging bottles.
7. Suitable for a wide range, reduce the process cost.


FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.

Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.

Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai

Q: How to install it?
A: We can provide installation.There are two options.The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.Option 2: Offer an online service.

Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
