| Place of Origin: | Jiangsu，China |
| Brand Name: | XIANFEI |
| Certification: | ISO |
| Model Number: | ZCG-12L |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 8800-10000USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 days after receiving your sample bottles and caps |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Name: | ZCG-12L | Machinery Capacity: | ≤4800bottles/hour |
|---|---|---|---|
| Filling Capacity: | 30-2000ml | Bottle Diameter: | 33-110ml |
| Measurement Accuracy: | ±1% | Material:: | SUS304/316L |
| Electrical Brand: | AirTAC,Sick,WIHIN | Dimension: | 2000x1100x2200 Mm |
| Weight: | 650Kg | ||
| High Light: | SUS316L Inline Bottle Filling Machine,2000mm Inline Bottle Filling Machine,2000mm plastic bottle packaging machine |
||

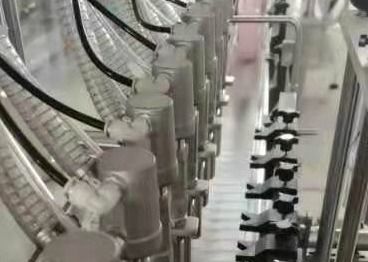

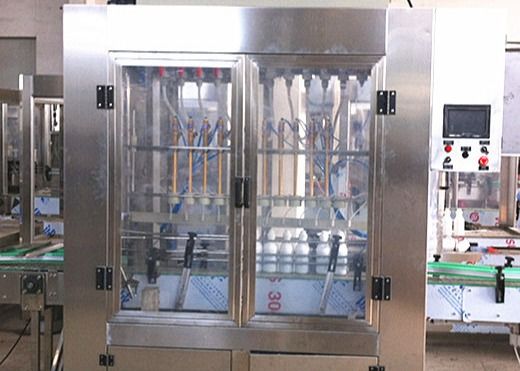

SUS316L Inline Bottle Filling Machine 2000mm Plastic Bottle Packaging Machine
Technical performance:
ZCG-12 inline bottle filling machine is a microcomputer (PLC) programmable control, photoelectric sensor, air operated filling equipment in one of the high-tech. This model is dedicated to food, such as: white wine, soy sauce, vinegar, spices, vegetable oil, syrup, edible mineral water and other liquids, and liquid filling pesticide chemical class. Filling measurement precision, no bubbles, no drip. Applicable to a variety of 50-1000ml bottle type (including shaped bottle) and filling.
1. This filling machine is made of stainless and anti-corrosion materials.
2. This filling machine can be used for daily chemical products, cleaning products and so on.
3. The accuracy can reach ±1%.
4. Material contact part is made of 316L stainless steel and non-toxic corrosion resistant tetrafluorine hose.
Specifications:
| Model | ZCG-12L(choice6,8,10,12,16) |
| Production capacity | <4800bottles/hour |
| Bottle Diameter | 33-110ml |
| Filling capacity | 30-2000ml |
| Measure precision | ±1% |
| Material | SUS304/316L |
|
Electrical Brand |
AirTAC,Sick,WIHIN |
| Contour dimensions | 2000x1100x2200 (mm) |
| Weight | 650Kg |
Filling speed parameter table
| Size | 10Heads | 12Heads | 16Heads |
| 100ml | 80Bottles/min | 100Bottles/min | 120Bottles/min |
| 250ml | 60Bottles/min | 75Bottles/min | 95Bottles/min |
| 500ml | 45Bottles/min | 60Bottles/min | 75Bottles/min |
| 1000ml | 35Bottles/min | 45Bottles/min | 60Bottles/min |
Elements brands list:
| Name | Brand and materials |
| Servo motor | Panasonic |
| Ballscrew | WIHIN |
| PLC | Mitsubishi |
| Touch screen | Weinview |
| Air cylinder | AirTAC |
| Electromagnetic valve | SHAKO |
| Optoelectronic switch | Sick |
SUS316L Inline Bottle Filling Machine 2000mm Plastic Bottle Packaging Machine
Competitive Advantage:
1. The machine is equipped with an environmental frame.
2. PLC programmable control is adopted.
3. 6-inch touch screen man-machine interface system.
4. Accurate positioning and simple operation.
5. The filling head does not leak and the filling quantity is accurate.
6. Easy to change bottle specifications, suitable for any shape of packaging bottles.
7. Suitable for a wide range, reduce the process cost.
Company Profile:
Our company was founded in 2005, is focused on food, medicine, pesticide, chemical packaging machinery research and development, manufacturing in one of the modern science and technology enterprises, and has obtained ISO9001:2008 quality management system certification.Our products include rotary series filling machine, in-line series filling machine, environmental protection series filling machine.Automatic pressure viscous liquid filling machine.Rotary series capping machine, linear series capping machine, self-adhesive labeling machine and so on.We will continue to provide customers with high quality equipment and perfect technical support.Warmly welcome new and old customers at home and abroad to visit and discuss cooperation.
FAQ:
Q: How many years of experience do you have in packaging machinery and equipment?
A: We have 16 years of experience in manufacturing packaging machinery and equipment.
Q: Do you guarantee the quality of your products?
A: Sure.We take our reputation very seriously.Quality first is our consistent principle.The company passed the Jiangsu high-tech enterprise certification in 2020.You can rest assured of the quality of our products.
Q: Where is your factory located?
A: Our factory is located in Jintan Economic Development Zone, Changzhou City, Jiangsu Province, China. It takes 2 hours by high-speed train to Shanghai
Q: How to install it?
A: We can provide installation.There are two options.The first option: we can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.Option 2: Offer an online service.
Q: How to ensure the operation of the filling machine?
A: Before delivery, we will test and debug all the machines in good condition and record the video for your inspection.
Tag:automatic liquid bottle filling machine,4 head liquid filling machine
