380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa

380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa

  • 380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa
  • 380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa
380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 17600-20000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T, L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Brand: XIANFEI Name: GNC-12L
Measure Precision: 1% Air Pressure: 0. 6-0. 8Mpa
Power Source: 380V, 50Hz Color: Silver Grey
Material: SUS304/316L Electrical Brand: Mitsubishi, PANASONIC, WEINVIEW
High Light:

380V ketchup filling machine

,

0. 8Mpa ketchup filling machine

,

380V sauce filling machine


380V Viscous Liquid Plastic Bottle Filling Machine , Tomato Sauce Filling Machine For PET Bottle




The detail standards:



Brand XIANFEI
Model GNC-12L
Measure precision ±1%
Air pressure 0. 6-0. 8Mpa
Power source 380V, 50Hz
Color Silver Grey
Material SUS304/316L
Electrical Brand Mitsubishi, PANASONIC, WEINVIEW




Performance advantages:



◆ Control system - using PLC control system, filling dose random fine-tuning.



◆ Operating Interface - 6 inch color screen touch operation interface, intuitive, simple, safe and reliable.



◆ Functional Improvement - There is a drip-proof device for cutting material, which can be used for submersible filling according to material characteristics.



◆ Electrical components - all adopt internationally renowned brands to ensure the safety, reliability, accuracy and stability of the equipment.







Brief introduction:

The machine is equipped with a special three-way filling valve, suitable for daily chemical, food, pesticide, medicine and other industries of filling.

 Especially for high viscosity materials (such as thick sauce, pepper sauce, tomato sauce, micro emulsion, suspension) effect is remarkable, high precision.

This machine adopts PCL programmable control, using 6 inch touch screen man-machine interface system, automatic bottle into, automatic filling, automatic bottle out.

Electrical and pneumatic components adopt international brands to ensure excellent quality and long-lasting and stable functions.




Technical performance:

◆ The machine adopts PLC programmable control and 6 Inch Touch screen man-machine interface system.

◆ It implements automatic bottle entry, automatic filling, automatic bottle exit, electrical appliances and pneumatic components all adopt international brands, ensuring excellent quality and durable and stable performance.

◆ The equipment is simple in structure and easy to operate.

◆ It is an ideal filling equipment for high viscosity materials in China.

◆ The machine is equipped with filling tightness head to prevent drip leakage and wire drawing, so as to ensure no drip leakage and wire drawing after filling.




Applications:

1. GNC-12L automatic pressure viscous liquid filling machine is suitable for high viscosity material filling.


2. It is also suitable for some food filling with viscosity.For example, honey, thick sauce, hot sauce, ketchup and so on.



3. Excellent performance when filling daily chemical products such as laundry detergent and detergent.


4. Microemulsions and suspending agents needed in pesticides can also be used for filling.

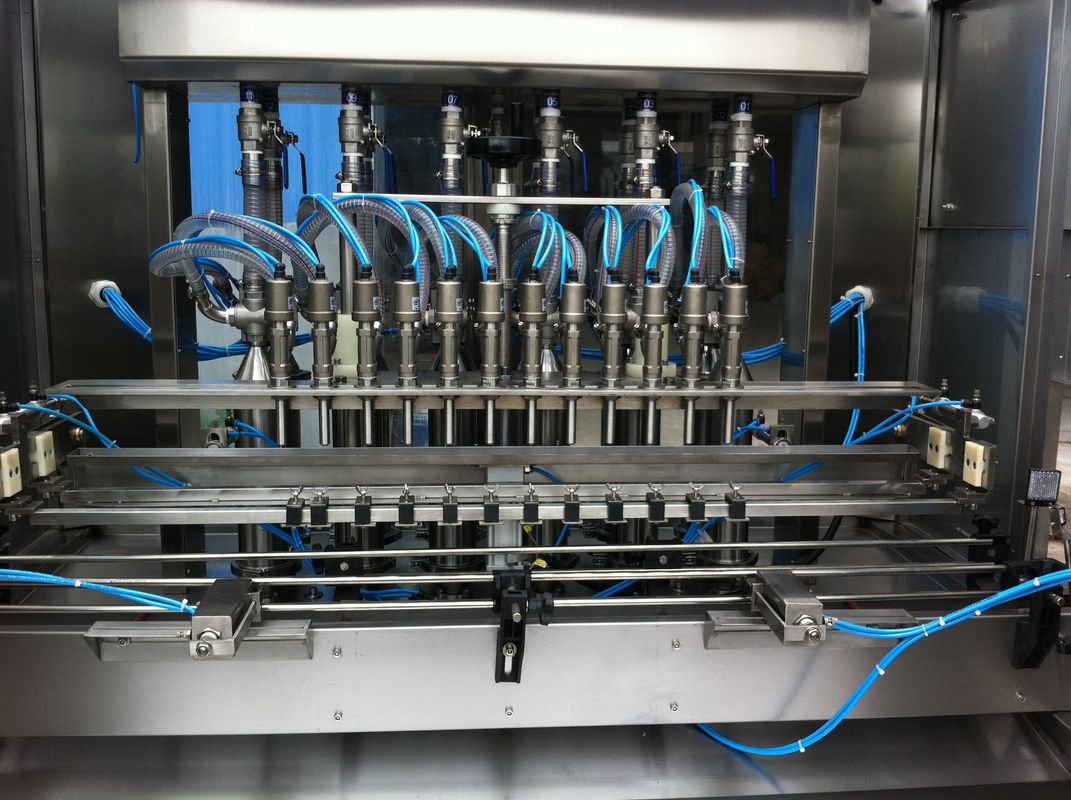

380V Sauce Ketchup Filling Machine Plastic Bottle 0. 8Mpa 0

380V Viscous Liquid Plasticr Bottle Filling Machine , Tomato Sauce Filling Machine For PET Bottle

Elements brands list:


Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
PLC Mitsubishi
Touch screen Weinview
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick



Competitive Advantage:


1. This filling machine is mainly made of SUS304 or SUS316L.
2. Accurate fixed position, easy operation.
3. PLC programmable control is adopted.
4. Adopt special three-way filling valve.
5. Fully automated.Automatic bottling, automatic filling.
6. 6-inch touch screen man-machine interface system.
7. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
8. No leaking of the filling head and accurate filling quantity.
9. Easy change the specification of the bottle and fits all the shapes of bottles.


What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?

1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers

2. Sample services
 We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory

3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.

4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
Tag: pressure viscous liquid filling machine,automatic liquid bottle filling machine,Laundry liquid detergent filling machine
