GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine

GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine

  • GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine
  • GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine
GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-6L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 14080-16000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T, L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: GNC-6L Brand: XIANFEI
Application: Viscous Liquid Application Bottlenecks: Ф33-Ф100 Mm
Shipment Port: Shanghai Port Core Selling Point: High Efficiency
Control: PLC Touch Screen Control Packing: Wooden Case
High Light:

33mm Viscous Liquid Filling Machine

,

GNC 6L Viscous Liquid Filling Machine

,

33mm plastic bottle packing machine



GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine





Major characteristics:



GNC-6L viscous liquid filling machine is filling valve for agent, and filling Cream products, especially for high viscosity materials (such as the thick sauce, chili sauce, tomato sauce, seed coating, micro-emulsions, suspensions, etc.) is relatively effective, and high precision. It adopts PLC programmable control, together with the 6-inch touch screen human-machine interface system implemented automatically into the bottle, automatic filling, automatic out of the bottle, electrical, pneumatic element parts are an international brand, to ensure excellent quality and lasting stability performance.

We confirm that there is no leakage of the machine.





Main performance parameter



◆ Model: GNC-6L

◆ Brand: XIANFEI

◆ Applicationl: Viscous liquid

◆ Application bottlenecks: Ф33-Ф100 mm

◆ Shipment Port: Shanghai port

◆ Core Selling: High Efficiency

◆ Control: PLC Touch Screen Control

◆ Packing: Wooden case



Elements brands list:



Name configuration Brand Place of origin
GNC-6L Servo motor Panasonic Japan
PLC Mitsubishi Japan
Ball screw HIWIN Taiwan
Electromagnetic valve SHAKO Taiwan
Touch screen Weinview Taiwan
Air cylinder AirTAC Taiwan
Three-way valve XIANFEI Xianfei





Technical performance:



Filling valve, the machine adopts special tee is suitable for food, pharmaceutical, cosmetic, chemical and other industries, especially suitable for high viscosity material (such as clothing culture, suspension, etc.), highly effective, high precision, adopt PCLS programmable control, 6 inch touch-screen man-machine system, automatic into the bottle, automatic filling, automatic lose bottle, electric and pneumatic components adopt international brand,To ensure excellent quality and lasting stability of the function.Filling asphyxiator, prevent dripping and scrubbing, ensure that after filling no dripping and scrubbing.





Usage:

1. This machine is controlled by PLC program, servo motor and pneumatic valve.
2. It is an advanced filling system collecting mechanical, electrical and pneumatic system in one.
3. It is useful in viscous liquid filling.
4. It is easy to operated and with high efficient.
5. Ensure the high quality and long-lasting stability.
6. There is no leakage and dropping.
7. Accurate fixed position, easy operation.
8. No leaking of the filling head and accurate filling quantity.
9. Easy change the specification of the bottle and fits all the shapes of bottles.

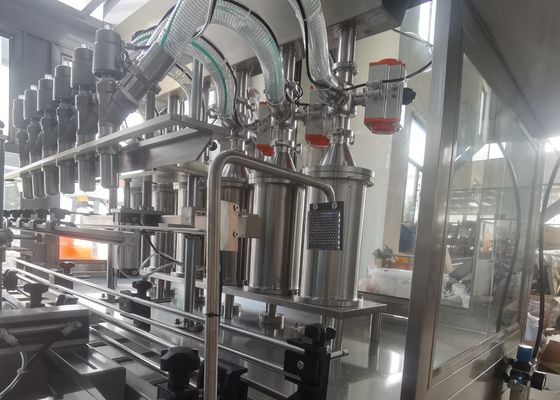

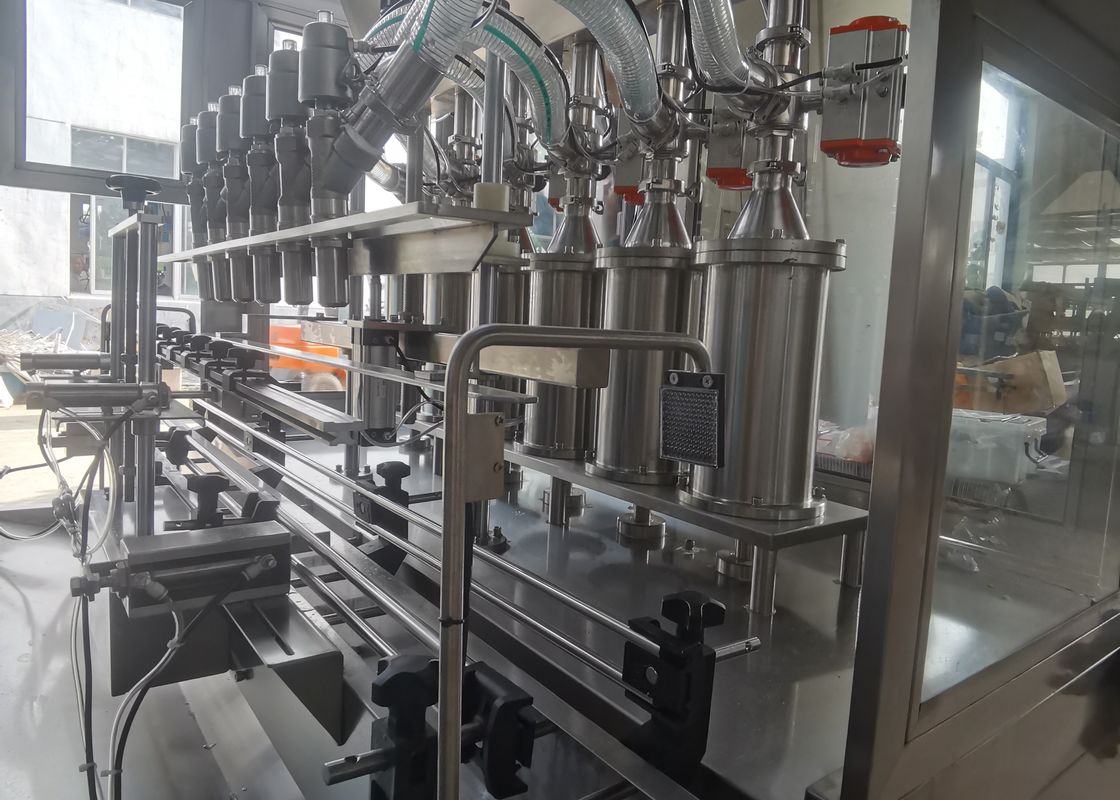

GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine 0



GNC 6L Viscous Liquid Filling Machine 33mm Plastic Bottle Packing Machine



Applications:



1. GNC-6L automatic pressure viscous liquid filling machine is suitable for high viscosity material filling.

2. Excellent performance when filling daily chemical products such as laundry detergent and detergent.

3. It is also suitable for some food filling with viscosity.For example, honey, thick sauce, hot sauce, ketchup and so on.

4. Microemulsions and suspending agents needed in pesticides can also be used for filling.







Competitive Advantage
1 This filling machine is mainly made of SUS304 or SUS316L.
2 Adopt special three-way filling valve.
3 PLC programmable control is adopted.
4 6-inch touch screen man-machine interface system.
5 Fully automated.Automatic bottling, automatic filling.
6 Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
