GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine

GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine

  • GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine
  • GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine
GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 17600-20000USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T, L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Name: GNC-12L Brand: XIANFEI
Color: Silver Grey Bottle Diameter Of Suiting For: 33mm-110mm
Measure Precision: 1% Production Capacity: ≤5000bottles/hour
Material: Stainless Steel Control: PLC Touch Screen Control
High Light:

GNC 12L liquid bottle packing machine

,

33mm cap Viscous Liquid Filling Machine

,

33mm liquid bottle packing machine


GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine

The detail standards:

ModelGNC-12L pressure viscous liquid filling machine
BrandXIANFEI
ColorSilver Grey
Bottle diameter of suiting for33mm-110mm
Measure precision±1%
Production capacity≤5000bottles/hour
MaterialStainless Steel
ControlPLC Touch Screen Control



Brief introduction:
1. The machine is equipped with a special three-way filling valve, suitable for daily chemical, food, pesticide, medicine and other industries of filling.
2. Especially for high viscosity materials (such as thick sauce, pepper sauce, tomato sauce, micro emulsion, suspension) effect is remarkable, high precision.
3. This machine adopts PCL programmable control, using 6 inch touch screen man-machine interface system, automatic bottle into, automatic filling, automatic bottle out.
4. Electrical and pneumatic components adopt international brands to ensure excellent quality and long-lasting and stable functions.


Technical performance:

1. The machine adopts PLC programmable control and 6 Inch Touch screen man-machine interface system.

2. It implements automatic bottle entry, automatic filling, automatic bottle exit, electrical appliances and pneumatic components all adopt international brands, ensuring excellent quality and durable and stable performance.

3. The equipment is simple in structure and easy to operate.

4. It is an ideal filling equipment for high viscosity materials in China.

5. The machine is equipped with filling tightness head to prevent drip leakage and wire drawing, so as to ensure no drip leakage and wire drawing after filling.




Applications:

1. GNC-12L automatic pressure viscous liquid filling machine is suitable for high viscosity material filling.
2. Excellent performance when filling daily chemical products such as laundry detergent and detergent.
3. It is also suitable for some food filling with viscosity.For example, honey, thick sauce, hot sauce, ketchup and so on.
4. Microemulsions and suspending agents needed in pesticides can also be used for filling.

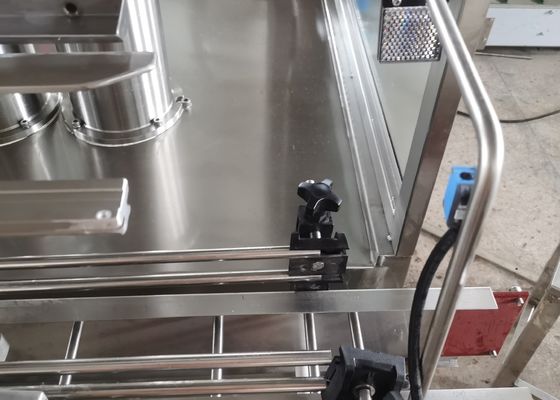

GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine 0

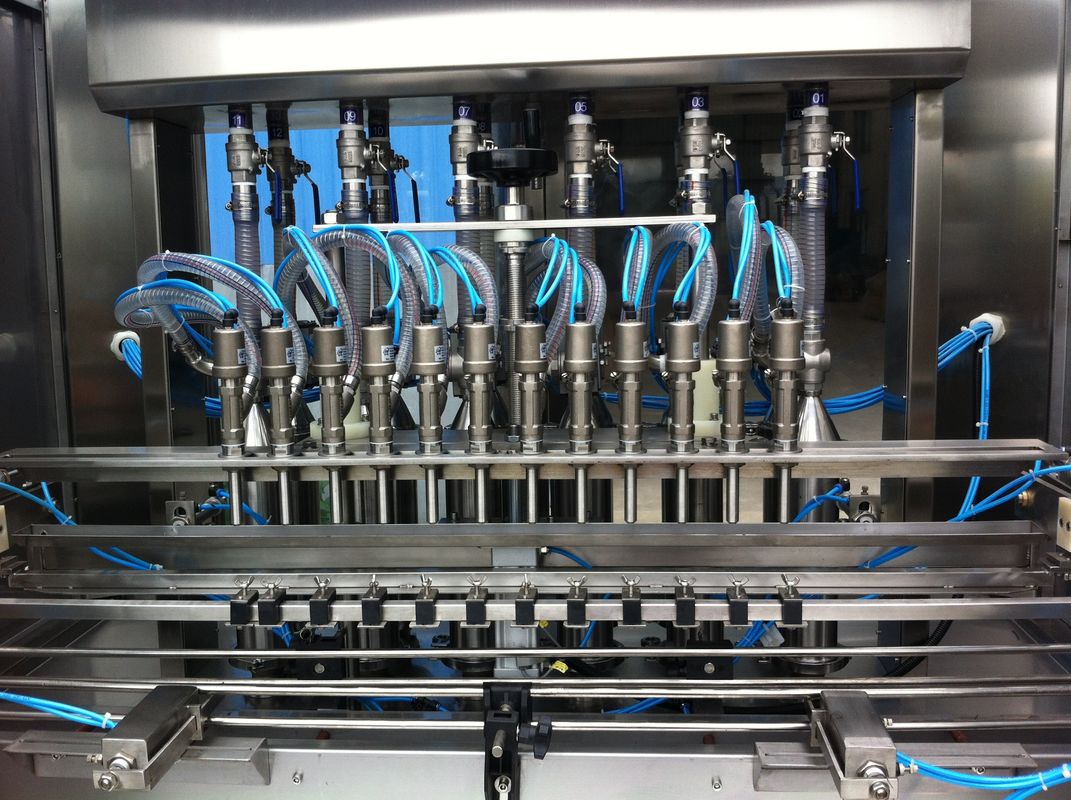

GNC 12L Viscous Liquid Filling Machine 33mm Cap Liquid Bottle Packing Machine

Elements brands list:


NameBrand and materials
Servo motorPanasonic
BallscrewWIHIN
PLCMitsubishi
Touch screenWeinview
Air cylinderAirTAC
Three-way valveXIANFEI
Electromagnetic valveSHAKO
Optoelectronic switchSick



Competitive Advantage:

1. This filling machine is mainly made of SUS304 or SUS316L.
2. Accurate fixed position, easy operation.
3. Adopt special three-way filling valve.
4. PLC programmable control is adopted.
5. 6-inch touch screen man-machine interface system.
6. Fully automated.Automatic bottling, automatic filling.
7. Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.
8. No leaking of the filling head and accurate filling quantity.
9. Easy change the specification of the bottle and fits all the shapes of bottles.


What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?


1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers

2. Sample services
 We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory

3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.

4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
