Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine

Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine

Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine
Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine
Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine
Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-4LY
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 22700-25800USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 15 sets for a month
Contact Now
Detailed Product Description
Model: GNC-4LY Automatic Moving Servo Filling Machine Bottle Size: 500-5000ml
Air Pressure: 0. 6-0. 8Mpa Electrical Brand: Mitsubishi, PANASONIC, WEINVIEW
Application: Detergent Certification: ISO
Weight: 1000Kg Dimensions: 2000x1300x2200 (mm)
High Light:

5000ML chemical liquid filling machine

,

0. 8Mpa chemical liquid filling machine

,

5000ML bottle filling and capping machine



Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine

The detail standards:

Model GNC-4LY automatic moving servo filling machine
Bottle Size 500-5000ml
Air pressure 0. 6-0. 8Mpa
Electrical Brand Mitsubishi, PANASONIC, WEINVIEW
Application Detergent
Certification ISO
Weight 1000Kg
Dimensions 2000x1300x2200 (mm)




Product presentation

This Model of filling machine is a new generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.

This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.

Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.

It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.

It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.

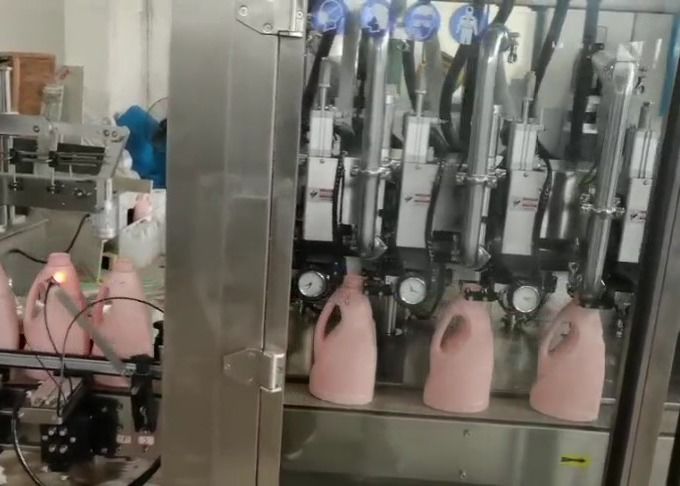

 Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine 0

Range of application:

GNC-4LY is our new generation of viscous liquid filling machine.
It is suitable for liquid filling in daily chemical, food, pesticide, medicine and other industries.
It has an excellent effect on the filling of household washing products such as laundry detergent, detergent and hair shampoo.
It is also widely used in food filling.For example, honey, ketchup, chili sauce and so on.
The filling liquid is pulled and pushed by the sliding of the piston and cylinder.
The filling machine can achieve high precision quantitative filling, filling more than 1000ml of materials, the accuracy can reach ±0.5%.


Daily Chemical Liquid Filling Machine 5000ML Bottle Filling And Capping Machine


Elements brands list
Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
Touch screen Weinview
PLC Mitsubishi
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick


Competitive Advantage:


1 This filling machine is mainly made of SUS304 or SUS316L.
2 PLC programmable control is adopted.
3 6-inch touch screen man-machine interface system.
4 Fully automated.Automatic bottling, automatic filling,the filling process is more stable.
5 Pneumatic components adopt well-known brands, such as Mitsubishi, Panasonic, etc.



What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?


1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers

2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory

3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.

4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
