316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine

316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine

  • 316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine
  • 316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine
316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine
Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-4LY
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 22700-25800USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: GNC-4LY Automatic Moving Servo Filling Machine Color: Silver Grey
Material: SUS 304/316L Measure Precision: ±0.5%(above 1000ml)
Driven Type: Electric Certification: ISO
Weight: 1000KG Dimensions: 2000x1300x2200 (mm)
High Light:

5000ml Detergent Filling Machine

,

316L Viscous Detergent Filling Machine

,

316L automatic bottle capping machine





316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine



Brief introduction



This Model of filling machine is a new generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading. This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling. It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries. It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.





Applications:





1 GNC-4LY is our new generation of viscous liquid filling machine.
2 It is suitable for liquid filling in daily chemical, food, pesticide, medicine and other industries.
3 It has an excellent effect on the filling of household washing products such as laundry detergent, detergent and hair shampoo.
4 It is also widely used in food filling.For example, honey, ketchup, chili sauce and so on.
5 The filling liquid is pulled and pushed by the sliding of the piston and cylinder.
6 The filling machine can achieve high precision quantitative filling, filling more than 1000ml of materials, the accuracy can reach ±0.5%.

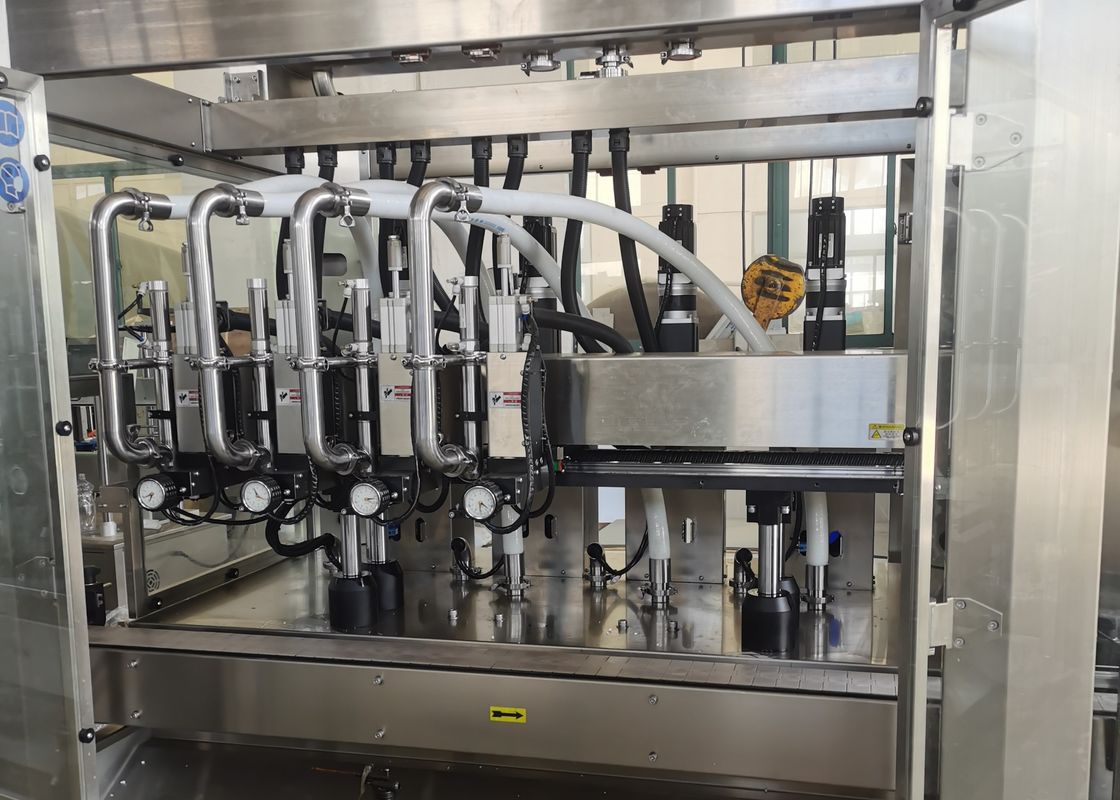

316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine 0



Specifications:



Model GNC-4LY automatic moving servo filling machine
Color Silver Grey
Material SUS304/316L
Measure precision ±0.5%(above 1000ml)
Driven Type Electric
Certification ISO
Weight 1000Kg
Dimensions 2000x1300x2200 (mm)





Elements brands list:



Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
Touch screen Weinview
PLC Mitsubishi
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick

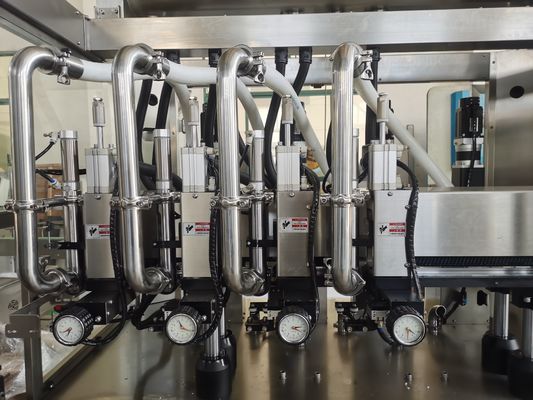

316L Viscous Detergent Filling Machine 5000ml Automatic Bottle Capping Machine



Competitive Advantage:



1. The filling machine adopts the environment-friendly outer frame, which greatly improves the safety and health problems in the filling process.

2. PLC programmable control is adopted to improve the efficiency and accuracy of the filling process.

3. 6-inch touch screen man-machine interface system, simple and convenient operation.Fully automated.

4. Automatic bottling, automatic filling, more stable than the previous generation of pressure viscous liquid filling process.

5. Pneumatic components of the machine adopt Mitsubishi, Panasonic and other well-known brands, quality is guaranteed.







What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
