1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine

1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine

  • 1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine
  • 1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine
1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine
Product Details:
Place of Origin: CHANGZHOU,CHINA
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-4LY
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 19360-25800USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Name: GNC-4LY Automatic Moving Servo Filling Machine Filling Capacity: 500-5000ml
Measuring Accuracy: ±0.5%(above 1000ml) Electrical Brand: Weinview,SHAKO,sick
Dimension: 2000x1300x2200 Mm Weight: About 1000Kg
High Light:

1000Kg detergent liquid filling machine

,

1000ml Detergent Filling Machine

,

1000ml water bottle filling machine





1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine

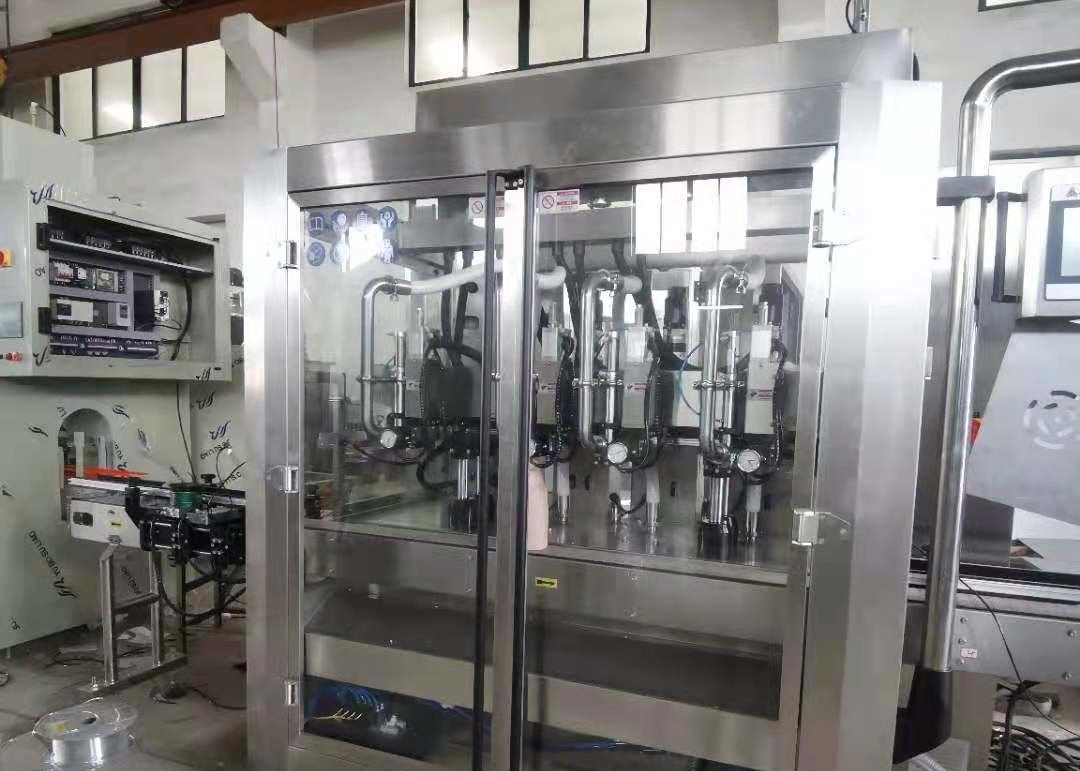

Brief introduction



  • This Model of filling machine is a new generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.
  • This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.
  • It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.
  • Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.
  • It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.





Applications:



GNC-4LY is our new generation of viscous liquid filling machine.Focus on filling viscous liquids.It can be used for filling thick liquid such as hair shampoo.Only through simple machine adjustment can be applied to a variety of bottle shapes, such as round bottle, square bottle, flat bottle and so onMany daily chemical products used in daily life can be filled.For example, hand sanitizer, body lotion, hair shampoo, laundry detergent, etc.The filling liquid is pulled and pushed by the sliding of the piston and cylinder.Therefore, the filling efficiency and accuracy are greatly improved.The filling machine can achieve high precision quantitative filling, can fill more than 1000ml of materials, accuracy up to ±0.5%.



1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine 0



Specifications:



Model GNC-4LY
Brand XIANFEI
Color Silver Grey
Material SUS304/316L
Material Stainless Steel
Bottle Type PET Plastic Bottle,glass bottle
Application bottle Round bottle,Square bottle,Flat bottle,etc



Elements brands list:



Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
Touch screen Weinview
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick







1000Kg Detergent Filling Machine 1000ml Flat Water Bottle Filling Machine





Competitive Advantage:



The filling machine adopts the environment-friendly outer frame, which greatly improves the safety and health problems in the filling process.PLC programmable control is adopted to improve the efficiency and accuracy of the filling process.6-inch touch screen man-machine interface system, simple and convenient operation.Fully automated.Automatic bottling, automatic filling, more stable than the previous generation of pressure viscous liquid filling process.Pneumatic components of the machine adopt Mitsubishi, Panasonic and other well-known brands, quality is guaranteed.







What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
