Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: XIANFEI
Certification: ISO
Model Number: GNC-4LY
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 22700-25800USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: GNC-4LY Color: Silver Grey
Material: SUS 304/316L Bottle Type: PET Plastic Bottle,glass Bottle
Measure Precision: ±0.5%(above 1000ml) Filling Volume: 500-5000ml
Air Pressure: 0. 6-0. 8Mpa Gas Consumption: 300L/min
Voltage: 380V Total Power: 5KW
High Light:

300L min electric liquid filling machine

,

Sus304 electric liquid filling machine

,

Sus304 liquid filling and capping machine





Gas consumption 300L/Min Electric Liquid Filling Machine Sus304 Liquid Filling And Capping Machine

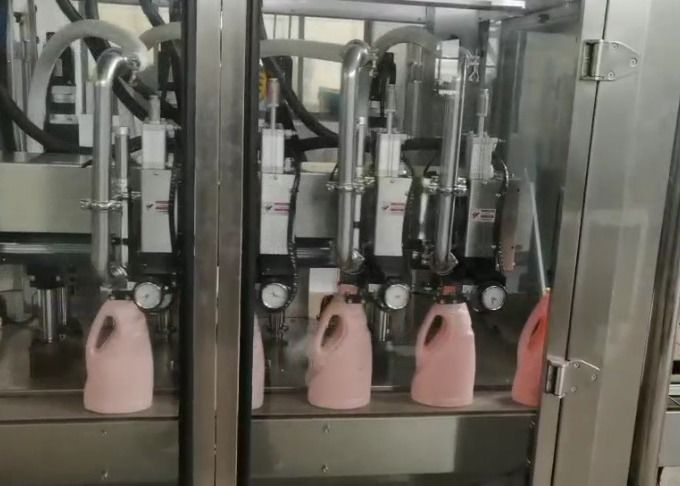

Brief introduction



1 This Model of filling machine is a new generation of viscous liquid filling machine developed by our company according to the demands of liquid washing upgrading.
2 This machine uses piston and cylinder block sliding to match the material pumping and pushing, and uses servo motor to control the position.
3 It can be used for liquid filling of daily chemical, food, pesticide, medicine and other industries.
4 Open and close solenoid valve and gas control filling head valve to reach high-precision quantitative filling.
5 It adopts PLC programmable control,equipped with 6-inch touch screen human-machine interface system,photoelectric identification mobile (tracking) system adopts module form, achieving the design concept of automatic bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle with-out tracking and no filling,ensuring the high quality and long-lasting and stable performance.





Applications:



1. GNC-4LY is our new generation of viscous liquid filling machine.Compared with the previous generation, the filling efficiency and precision are greatly improved
2. It has a very good effect on filling such thick liquid as hair shampoo, bath cream and other household daily washing and care products.
3. The machine can be applied to a variety of bottle types, only through simple machine adjustment can be.Such as round bottle, square bottle, flat bottle and so on.
4. The filling liquid is pulled and pushed by the sliding of the piston and cylinder.Therefore, the filling efficiency and accuracy are greatly improved.
5. The filling machine can achieve high precision quantitative filling, can fill more than 1000ml of materials, accuracy up to ±0.5%.



Gas consumption 300L/Min Electric Liquid Filling Machine Sus304 Liquid Filling And Capping Machine 0



Specifications:



Model GNC-4LY
Color Silver Grey
Material SUS304/316L
Bottle Type PET Plastic Bottle,glass bottle
Measure precision ±0.5%(above 1000ml)
Filling Volume 500-5000ml
Air pressure 0. 6-0. 8Mpa
Gas consumption 300L/min
Voltage 380V
Total power 5KW




Elements brands list
Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
Touch screen Weinview
PLC Mitsubishi
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick





Gas consumption 300L/Min Electric Liquid Filling Machine Sus304 Liquid Filling And Capping Machine



Competitive Advantage:



1. The filling machine adopts the environment-friendly outer frame, which greatly improves the safety and health problems in the filling process.

2. PLC programmable control is adopted to improve the efficiency and accuracy of the filling process.

3. 6-inch touch screen man-machine interface system, simple and convenient operation.Fully automated.

4. Automatic bottling, automatic filling, more stable than the previous generation of pressure viscous liquid filling process.

5. Pneumatic components of the machine adopt Mitsubishi, Panasonic and other well-known brands, quality is guaranteed.







What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
