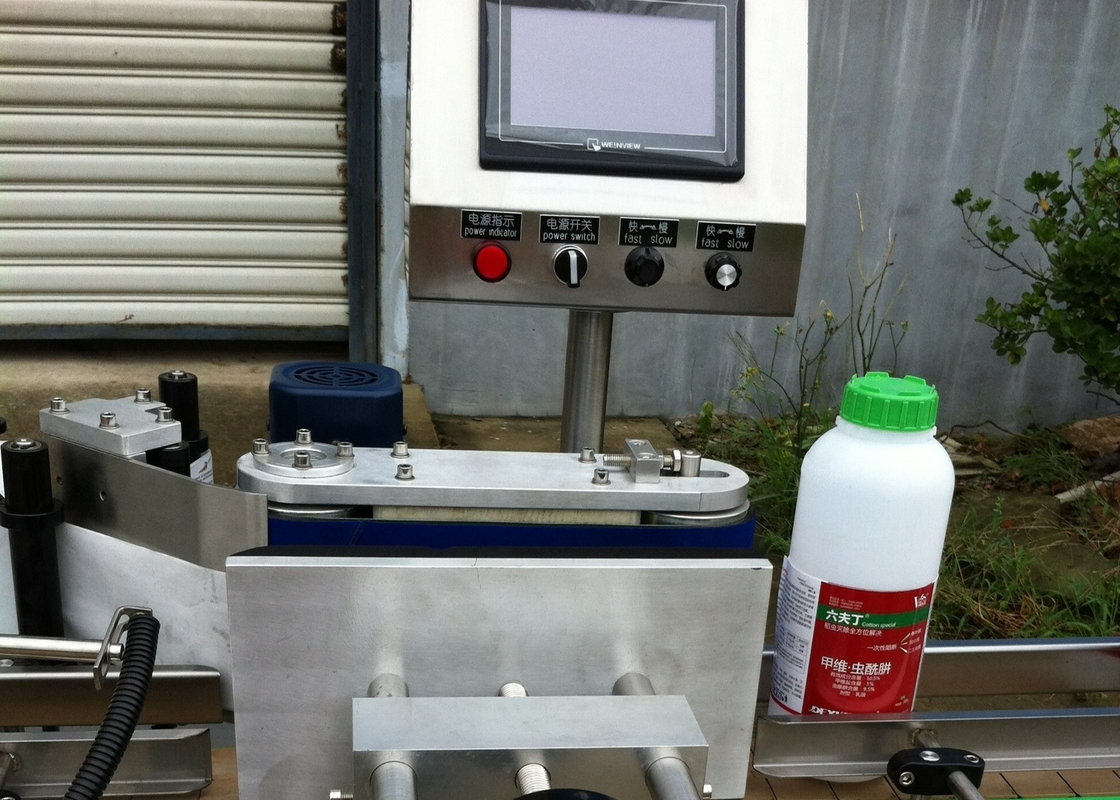

Round Bottle Stick Label Automatically Adhesive Labeling Machine 1 Year Warranty

Round Bottle Stick Label Automatically Adhesive Labeling Machine 1 Year Warranty

Round Bottle Stick Label Automatically Adhesive Labeling Machine 1 Year Warranty
Round Bottle Stick Label Automatically Adhesive Labeling Machine 1 Year Warranty
Round Bottle Stick Label Automatically Adhesive Labeling Machine 1 Year Warranty
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: TB-120A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 11880-13500USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: TB-120 Type: Labeling Machine
Put To Use: Stick Label Automaticlly Bottle Shape: Round
Suitable Bottle: Plastic/Glass Bottle After Sales Service: Engineers Available To Service Machinery Overseas
Contour Dimensions: 2000 X 1000 X 1300 Mm Warranty: 1 Year
High Light:

1000mm Adhesive Labeling Machine


ISO Automatic Adhesive Labeling Machine


Round Bottle Sticker Labeling Machine



Round Bottle Stick Label Automaticlly Adhesive Labeling Machine 1 Year Warranty


Brief introduction:


TB-120 automatic labeling machine includes host, top pressure belt components, product feeding roller, conveyor, product straightening belt adjustment, etc.
1. Conveying speed can be adjusted on the touch screen;
2. The label sensor will be used to control the label discharge;
3. After the label is attached, attach it to the bottle smoothly with a brush.
4. The biggest advantage of this machine is that each mechanical action is controlled by a separate drive motor, convenient adjustment, long use time.





1. Apply to single side label or two side labels of the product.


2. It is suitable for both irregular and irregular bottle shapes.


3. Can be used for labeling bottles of chemical, petroleum, motor oil and other kinds of bottles.


4. Double-sided labeling machine is widely used in agriculture, food, daily chemical, medicine and other industries; For example, shampoo flat bottle, medicine flat bottle, jam glass round bottle and other products labeling demand.


5. Realize on the product side plane, side large radian surface, square surface, automatically attached sticker, dry film.



Technical parameter:


Model  TB-120
Type Labeling Machine
Put to use Stick Label Automaticlly
Contour dimensions 2000 x 1000 x 1300 mm
Warranty 1 Year
Suitable Bottle Plastic/Glass Bottle
Place Of Origin Changzhou, China (Mainland)
Bottle Shape Round
After-sales Service  Engineers Available To Service Machinery Overseas






◆ Applicable Tags: stickers, sticker film, electronic monitoring code, bar code, etc.


◆ Application: requirements circumference surface or a small tag attached to the cone surface or membrane of small products.


◆ Application industry: widely used in cosmetics, electronics, medicine, metals, plastics, cosmetics and other industries.


◆ Application: Solid plastic bottle labeling, Ampoule labeling, paper round bottles, vials labeling, labeling and pen.






Work process :


1. Core principles: separation of sub-bottles round the product, put on the conveyor belt, the sensor detects product pass the signal returned to the label control system, where appropriate motor control system to control the corresponding label and affixed to the products sent to be posted standard position, the product flows through the follow-standard equipment, cover driven products marked with rotation, the label was rolling cover, a label attached Movements;


2. Operation: release products (up to blanking box) -> separate product and placed on the conveyor belt (device automatically) -> product delivery (equipment automatically) -> labeling (device automatically) -> cover standard (device automatically) -> collect the product labeling.




Components list:


  •  Main motor --- Japan --- Panasonic
  •  Touch screen --- Taiwan --- Willas
  •  Inverter --- Japan --- Panasonic
  •  Photoelectric sensor --- Korea --- Autonics
  •  U photoelectric --- Taiwan --- Fotek



Competitive Advantage:


◆ Control system -- Mitsubishi PLC control system to ensure the accuracy of labeling.

◆ Operation interface -- color screen operation interface, man-machine operation interface is simple, safe and reliable.

◆ Function improvement - with storage and memory function, can be repeated calls to the operation of data records.

◆ Electrical components -- international famous brands are used to ensure the safety and reliability of the equipment, high accuracy;

◆ Mechanical parts -- The main parts of the machine are made of 304 stainless steel.

◆ Maintenance -- The machine meets the requirements of GMP, and can be easily disassembled, cleaned and maintained.

◆ Adjust the situation - the whole week and half a week of round bottle labeling, only need simple adjustment, easy to get.
