Air Pressure 0.8Mpa Automatic Oil Filling Machine Lubricant 2000mm

Air Pressure 0.8Mpa Automatic Oil Filling Machine Lubricant 2000mm

  • Air Pressure 0.8Mpa Automatic Oil Filling Machine Lubricant 2000mm
  • Air Pressure 0.8Mpa Automatic Oil Filling Machine Lubricant 2000mm
Air Pressure 0.8Mpa Automatic Oil Filling Machine Lubricant 2000mm
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: ZLDG
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 13640-15500USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Name: ZLDG Serise Automatic Oil Filling Machine Production Capacity: 300-1500 Bottles Per Hour
Filling Accuracy: ±0.3% Total Power: 3.0 KW
Air Pressure: 0. 5-0. 8 Mpa Dimension: 1500x1100x2000 Mm
High Light:

0.8Mpa Automatic Oil Filling Machine

,

2000mm Automatic Oil Filling Machine

,

2000mm lubricant oil filling machine



Air Pressure 0. 5-0. 8 Mpa Automatic Oil Filling Machine , 300-1500 Bottles Per Hour

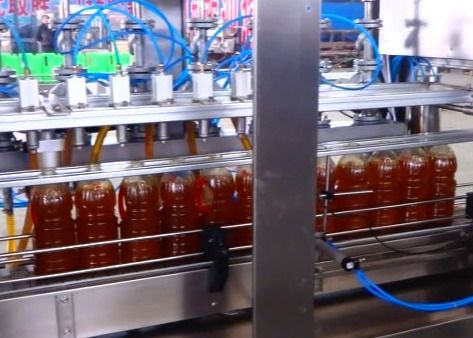

Equipment characteristics:



◈ The filling machine is a full-automatic quantitative liquid filling machine, which is suitable for filling various oils, such as lubricating oil and edible oil.



◈ It adopts high-strength stainless steel frame, which is easy to disassemble and clean and meets GMP requirements



◈ Man machine interface, directly set the filling quantity, simple adjustment of filling quantity and filling speed, operation and display by touch screen, beautiful appearance;



◈ PLC program control, frequency converter speed regulation linear filling;



◈ High precision liquid pump, accurate and reliable quantitative;



◈ Mechanical seal and automatic suction double anti dripping;



◈ High efficiency filling with fast and slow double flow rate.





Unique filling method:



1. The design and selection of straight-line group bottling and bottling methods expand the filling function. All kinds of containers of various shapes can be effectively filled in this equipment.



2. The selection of international advanced gas filling valve, to ensure that the filling process without dripping, no saliva.



3. Powerful PLC software support, can realize the ideal filling operation.



4. Man-machine friendly interface, all operations are completed on the touch type color screen.





Specifications:



Model ZLDG
Filling Volume 0. 2-5L
Filling accuracy ±0.3%
filling head 2,4,6,8,10,12Heads(Optional filling head)
Production capacity 300-1500bottles/hour
Air pressure 0. 5-0. 8Mpa
Power source 50Hz 3N-380V ±10%
Total power 3. 0KW
Contour dimensions 1500x1100x2000mm





Elements brands list:



Name Brand and materials
Servo motor Panasonic
Ballscrew WIHIN
PLC Mitsubishi
Touch screen Weinview
Air cylinder AirTAC
Three-way valve XIANFEI
Electromagnetic valve SHAKO
Optoelectronic switch Sick







Air Pressure 0. 5-0. 8 Mpa Automatic Oil Filling Machine , 300-1500 Bottles Per Hour



Competitive Advantage:



1. Adopt high strength stainless steel frame, easy to disassemble, easy to clean, in line with GMP requirements.



2. Man-machine interface, directly set the filling amount, filling amount and filling speed adjustment is simple, by the touch screen operation and display, beautiful appearance.



3. PLC program control, inverter speed linear filling.



4. High precision liquid pump, quantitative accurate and reliable.



5. mechanical seal and automatic suction double leakage prevention.



6. Fast first and then slow double flow rate of efficient filling.





What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?



1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers



2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory



3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.



4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
