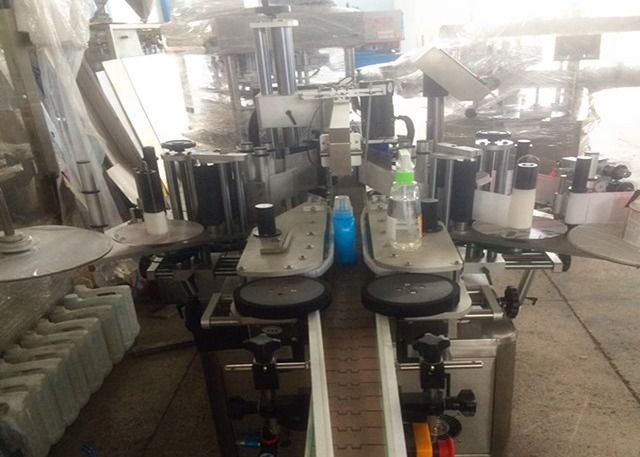

Ss316 Pet Plastic Bottle Label Printing Machine Stick 2.6kw

Ss316 Pet Plastic Bottle Label Printing Machine Stick 2.6kw

Ss316 Pet Plastic Bottle Label Printing Machine Stick 2.6kw
Ss316 Pet Plastic Bottle Label Printing Machine Stick 2.6kw
Ss316 Pet Plastic Bottle Label Printing Machine Stick 2.6kw
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: TB-120A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 11880-13500USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: TB-120A Application: Bottle Self Adhesive Label
Material: Stainless Steel 304/316 Control: Touch Screen
Usage: Stick Label Automaticlly Weight: 360Kg
Total Power: 2.6kw Dimension: 2000x1000x1300 (mm)
High Light:

ss316 plastic bottle label printing machine

,

2.6kw plastic bottle label printing machine

,

2.6kw pet bottle labeling machine





Weight 600 Kilogram PLC Touch Screen Control Automatic Adhesive Labeling Machine





Technical parameter:



Model of machine TB-120A
Application Bottle Self Adhesive Label
Material Stainless Steel 304/316
Control Touch screen
Usage Stick Label Automaticlly
Weight 360Kg
Total Power 2.6kw
Contour dimensions 2000x1000x1300 (mm)





The principle characteristics:

A. Self-adhesive labeling machine has A wide range of application: it can realize the side (plane) sheet of square bottle/flat bottle (full bottle state).

B. Unique material distribution mechanism ensures reliable and effective material distribution when used with the production line.

C. Unique corner labeling mechanism ensures that the corner labeling on the three sides of the bottle is smooth and wrinkle free.

D. The self-adhesive labeling machine can be used alone or in cooperation with the production line.





Applications:



1. Apply to single side label or two side labels of the product.



2. It is suitable for both irregular and irregular bottle shapes.



3. Can be used for labeling bottles of chemical, petroleum, motor oil and other kinds of bottles.



4. Double-sided labeling machine is widely used in agriculture, food, daily chemical, medicine and other industries; For example, shampoo flat bottle, medicine flat bottle, jam glass round bottle and other products labeling demand.



5. Realize on the product side plane, side large radian surface, square surface, automatically attached sticker, dry film.





Work process :



1. Core principles: separation of sub-bottles round the product, put on the conveyor belt, the sensor detects product pass the signal returned to the label control system, where appropriate motor control system to control the corresponding label and affixed to the products sent to be posted standard position, the product flows through the follow-standard equipment, cover driven products marked with rotation, the label was rolling cover, a label attached Movements;



2. Operation: release products (up to blanking box) -> separate product and placed on the conveyor belt (device automatically) -> product delivery (equipment automatically) -> labeling (device automatically) -> cover standard (device automatically) -> collect the product labeling.







Elements brands list:



Name Brand and materials
PLC Mitsubishi
Stepper motor Four seas
Touch screen Weinview
Vector inverter Inverton





Weight 600 Kilogram PLC Touch Screen Control Automatic Adhesive Labeling Machine



Competitive Advantage:



◆ Control system -- Mitsubishi PLC control system to ensure the accuracy of labeling.

◆ Operation interface -- color screen operation interface, man-machine operation interface is simple, safe and reliable.

◆ Function improvement - with storage and memory function, can be repeated calls to the operation of data records.

◆ Electrical components -- international famous brands are used to ensure the safety and reliability of the equipment, high accuracy;

◆ Mechanical parts -- The main parts of the machine are made of 304 stainless steel.

◆ Maintenance -- The machine meets the requirements of GMP, and can be easily disassembled, cleaned and maintained.

◆ Adjust the situation - the whole week and half a week of round bottle labeling, only need simple adjustment, easy to get.
