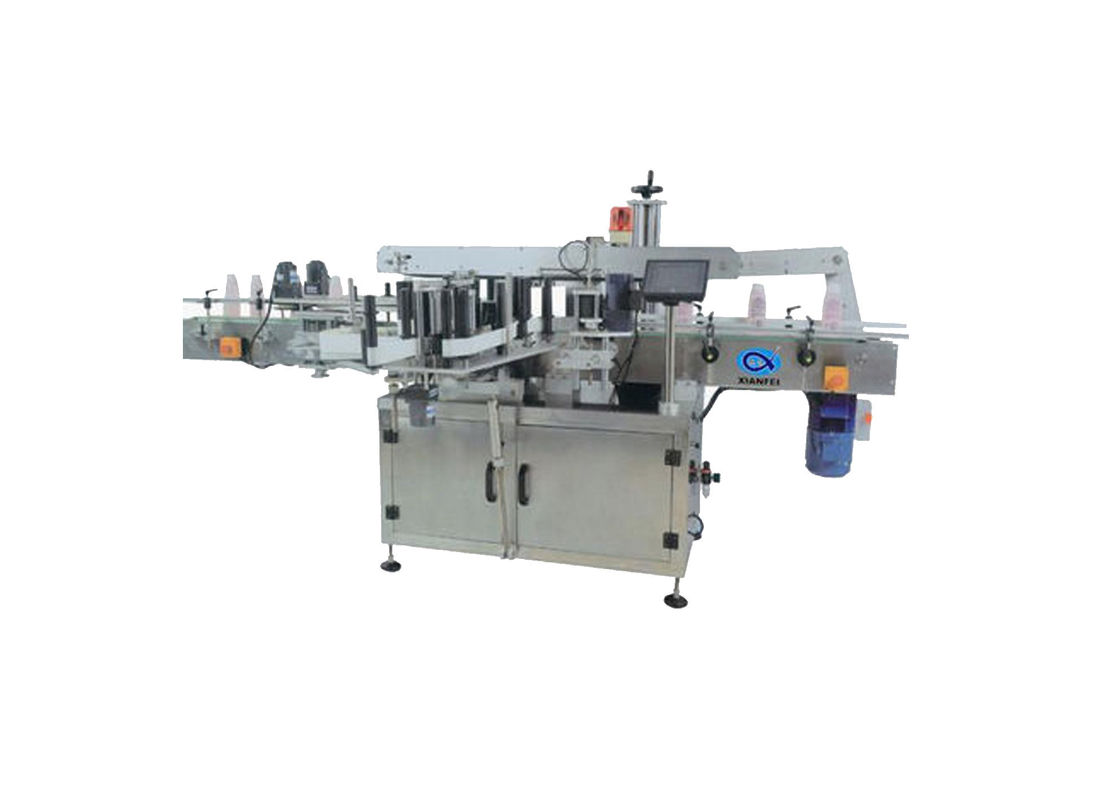

PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers

PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers

PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers
PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers
PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: TB-120A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 11880-13500USD
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Character: Labeling Instantly Advantage: Efficiency
Control: PLC+Touch Screen Usage: Stick Label Automaticlly
Contour Dimensions: 2000x1000x1300 (mm) Warranty: 12 Months
Place Of Origin: Jiangsu, China (Mainland) After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

PLC pressure sensitive labeling machines


1.3m pressure sensitive labeling machines


PLC pressure sensitive labelers



PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers


Technical parameter:


Character Labeling Instantly
Advantage Efficiency
Control PLC+Touch screen
Usage Stick Label Automaticlly
Contour dimensions 2000x1000x1300 (mm)
Warranty 12 Months
Place Of Origin Jiangsu , China (Mainland)
After-sales Service Provided Engineers Available To Service Machinery Overseas





1. Apply to single side label or two side labels of the product.


2. It is suitable for both irregular and irregular bottle shapes.


3. Can be used for labeling bottles of chemical, petroleum, motor oil and other kinds of bottles.


4. Double-sided labeling machine is widely used in agriculture, food, daily chemical, medicine and other industries; For example, shampoo flat bottle, medicine flat bottle, jam glass round bottle and other products labeling demand.


5. Realize on the product side plane, side large radian surface, square surface, automatically attached sticker, dry film.



Work process :


1. Core principles: separation of sub-bottles round the product, put on the conveyor belt, the sensor detects product pass the signal returned to the label control system, where appropriate motor control system to control the corresponding label and affixed to the products sent to be posted standard position, the product flows through the follow-standard equipment, cover driven products marked with rotation, the label was rolling cover, a label attached Movements;


2. Operation: release products (up to blanking box) -> separate product and placed on the conveyor belt (device automatically) -> product delivery (equipment automatically) -> labeling (device automatically) -> cover standard (device automatically) -> collect the product labeling.





◆ Equipment mainly stainless steel and high alloy material, the overall structure of a solid, beautiful;


◆ Standard PLC + touch screen + Stepper Motor + standard sensor electronic control system control and high safety, man-machine interface and improve the entire Chinese notes the failure prompt function, operation guidance function; easy to use, easy maintenance;


◆ Equipment for complete information (including the device structure, principle, operation, maintenance, repairs, upgrades and other descriptive information) to the normal operation of equipment to provide adequate protection;


◆ A fault alarm function, production counting function, power function (set time when no production, equipment automatically to power saving standby state), set the prompt production of several functions, parameter setting protection function (parameter set points Rights Management) ;


◆ Optional features: ① hot coding / Coding function ② automatically receive material features (combination of products to consider) ③ increased

labeling head④circumference circumferential positioning labeling function ⑤ to locate other features (according to customer request).



Components list:


1. Main motor --- Japan --- Panasonic

2. Touch screen --- Taiwan --- Willas

3. Inverter --- Japan --- Panasonic

4. Photoelectric sensor --- Korea --- Autonics

5. U photoelectric --- Taiwan --- Fotek




PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers


Competitive Advantage:


1. Control system -- Mitsubishi PLC control system to ensure the accuracy of labeling.

2. Operation interface -- color screen operation interface, man-machine operation interface is simple, safe and reliable.

3. Function improvement - with storage and memory function, can be repeated calls to the operation of data records.

4. Electrical components -- international famous brands are used to ensure the safety and reliability of the equipment, high accuracy;

5. Mechanical parts -- The main parts of the machine are made of 304 stainless steel.

6. Maintenance -- The machine meets the requirements of GMP, and can be easily disassembled, cleaned and maintained.

7. Adjust the situation - the whole week and half a week of round bottle labeling, only need simple adjustment, easy to get.


PLC Pressure Sensitive Labeling Machines 1.3m Pressure Sensitive Labelers 0


What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?


1. Product inspection

We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers


2. Sample services

We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory


3. Customization services

A: We can customize the machine according to the mechanical power, materials and bottles you provide

B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.


4. About install

We can provide installation.There are two options.

The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.

Option 2: Offer an online service.
