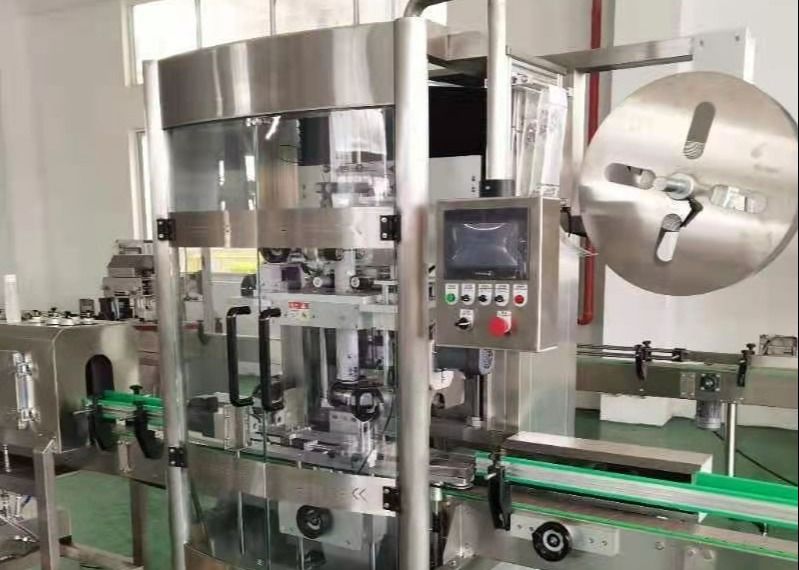

Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle

Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle

  • Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle
  • Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle
Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle
Product Details:
Place of Origin: Jiangsu,China
Brand Name: XIANFEI
Certification: ISO
Model Number: QTB-150
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 12760-14500USD
Packaging Details: Wooden case
Delivery Time: 30 days after receiving your sample bottles and caps
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Model: QTB-150 Applicable Diameter Of Bottle Body: Ø28-Ø125mm
Applicable Length Of Label: 30~250mm Applicable Thickness Of Label: 0. 035~0. 13mm
Applicable Internal Diameter Of Paper Tube: Adjusted Between 5"~10"at Will Production Efficiency: 150bottles/min
Total Power: 3. 0KW Voltage: 380/220V
High Light:

3.0KW shrink sleeve labeling equipment

,

125mm shrink sleeve labeling equipment

,

125mm heat shrink sleeve machine


Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle


Specifications:

ModelQTB-150
Applicable diameter of bottle bodyØ28-Ø125mm
Applicable length of label30~250mm
Applicable thickness of label0. 035~0. 13mm
Applicable internal diameter of paper tubeadjusted between 5"~10"at will
Production efficiency150bottles/min
Total power3. 0KW
voltage380/220V



Brief introduction:

This machine production efficiency of equipment: 100 bottles ~200 bottles/min; single shrinking label feeding tray: automatical controlled by micro-computer;automatic detection &positioning;quick and easy to change label. Label cutting is accurate. Aluminum alloy together with anode and 304 stainless steel, which makes the machine more stable and durable.

In terms of mechanical properties, the humanized and modular design makes it easier to make its fast changing mode easier and more convenient.
Because this machine adopts the new design concept development, not only reduces the mechanical adjustment, but also improves the cutting precision and the production speed.


Equipment features:

1. High stable mechanical structure: the whole machine adopts stainless steel protective frame cover, stable and not rust.

2. Flexible selection of multi-bottle type: round bottle, square bottle, elliptical bottle, etc., can also choose bottle mouth or bottle body.

3. Unique synchronous cutter holder, within the range of specifications, no need to change the cutter holder. If you need to change the specification, it can be completed quickly in 5 minutes.

4. Wide range of application: suitable for food, beverage, cleaning supplies, drugs, bottles and other plastic bottles, glass bottles, PVC, PET, PS, cans and other containers.

5. The shape is exquisite and beautiful, the overall structure is strong, and the use is more light and flexible.

6. The structural components of this machine are simple and generous, which can ensure low failure rate and easy maintenance.

7. The whole series of main body safety protection frame, considerate design.


Applications:

1. Applicable bottle type:various kinds of bottle types, for example: round bottle, square bottle, curve bottle and cup-shaped,etc.

2. It is more commonly used on the label of beverage bottles.For example, water bottles, juice bottles and so on.

3. Food, beverage and pharmaceutical industry, condiment, fruit juice, injection needle, milk, refined oil, etc.

4. Suitable for various bottle types of fruit juice, tea drinks, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industry, not only set the position accuracy is high, and the contraction can highlight the bottle to perfect the bottle type.



Elements brands list:

NameBrand and materials
Servo motorPanasonic
BallscrewWIHIN
PLCMitsubishi
Touch screenWeinview
Air cylinderAirTAC
Electromagnetic valveSHAKO
Optoelectronic switchSick



Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle




After Service:

  • The machines’ quality that we sold will be guaranteed for 1 year.
  • We will give you long time technology supply.
  • We can dispatch our engineer to you for installing and debugging machines. Engineer’s round-trip tickets, accommodation, and your side traveling fee will be charged by you.
  • We can also supply you mounting process, so your engineers can fit and debug machines by themselves.



Advantage:

1. Our Company can provide complete engineering design more efficient, more wide new products to satisfy the customers' needs.

2. Our company has strong team of technicians and three engineering technicians who care specially researching and making packing machinery,and two senior engineering technicians invited from outside who have been engaged in to development and manufacture of packaging machine for more than 15 years. Most products integrate the idea of electro mechanical integration and reaches international advanced level.

3. The whole process is controlled by PLC,with its advanced technology, (patent:200810021345.X,200820041906.8,200910116606.0,200920172781.7) reliable quality and good credit.

 Automatic 3.0KW Heat Shrink Sleeve Labeling Equipment 125mm Plastic Bottle 0




What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?

1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers

2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory

3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.

4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
